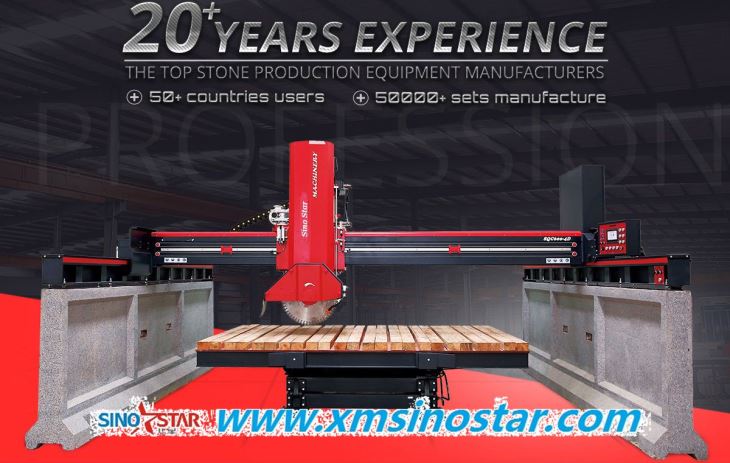

Granite Bridge Saw
Product Description
Granite Bridge Saw machine adopts microcomputer control system and human-machine interface, combined with an ultra-high precision rotary encoder to locate and infrared device, uses the inverter to control left-right feeding, adjusts the speed according to the stone material. Side-beam rails of granite bridge saw use slide V-rail, contacting area is very large, thanks to this advanced design, it is not easy to shake when cutting, the plate/slabs after cutting is flatness; while forward and backward slicing uses high precision screw-nut transmission, with automatic slicing.

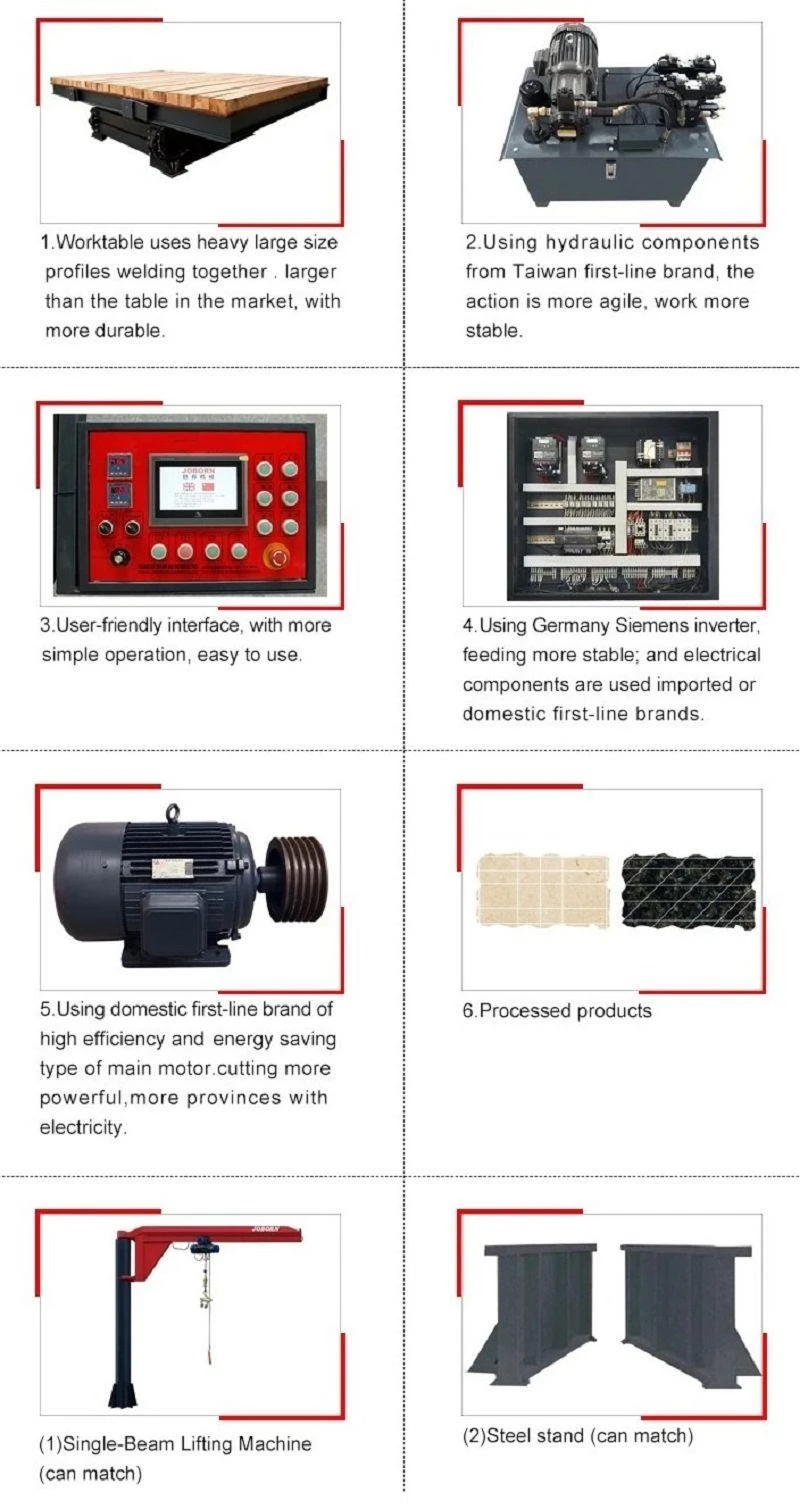

Product Details
Packing and shipping
Loading Port | Xiamen Port, China |
Packing | Plastic film packing and steel wire tighten |
Delivery Time | Within 2 weeks after receive down payment from client. |
Payment | T/T 30% IN ADVANCE, 70% BEFORE DELIVERY. |
Warranty | WITHIN 12 MONTHS. |
Production specifications:
Appellation | Unit | SQC700X |
Max.disc diameter | mm | Φ700 |
Max.lifting stroke | mm | 470 |
Worktable size | mm | 3200×2000 |
Blade tilting range | ° | 0°~50° |
Worktable rotation range(Optional) | ° | 0°,90° |
0°~360° | ||
Worktableturn-over degree | ° | 85° |
Water consumption | m³/h | 3 |
Power of main motor | kW | 22 |
Total power | kW | 29 |
Dimension(LxWxH) | mm | 6000×5600×3600 |
Weight | kg | 6500 (7500kg ) |
FAQ
1. How can I visit your factory?
Our factory locates in Quanzhou city, Fujian, China. You can land at Xiamen international airport and then it takes about one hour by car from Xiamen airport to our factory.
2. What is your payment?
T/T. 30% in advance and the rest before loading. Or we can negotiate a reasonable payment terms
3. If I buy your machine, how to install the machine and what is the guarantee
We provide good after-sale services, it would be best if customers can install the machine by themselves. However, we can send engineers to customer's workshop for machine installing and training if they can’t make it. We provide one year guarantee.
4. If any problem with the products, how do you deal with it?
We will take all the responsibility for quality problems.
