Slab Polishing Machine

Slab Polishing Machine

We offer automatic slab polishing machine for marble granite materials.
Send Inquiry

Product description

We offer automatic slab polishing machines for marble granite materials. This machine is widely used in the stone factory for grinding and polishing. We also export the equipment to many countries such as Vietnam, UAE, Canada, Oman, etc. The main development direction of stone slab polishing equipment is to adopt new technology of electrical control and integrate light, liquid, and electricity. Nowadays, polishing thickness of large slabs grinding and polishing equipment is getting thinner and thinner. Wide-face thin slab grinding and polishing technology will be used. One important factor to run the machine is the parameter setting. The process parameters include the concentration and supply of slab polishing agent, the pressure and linear velocity during polishing. Before a certain concentration, the polishing speed increases with the increase of the stone polishing agent concentration. When the concentration reaches its maximum, the polishing speed decreases with the increase of the concentration. Similarly, polishing speed is the highest when the amount of polishing agent is at a certain value, and then the polishing speed decreases if the amount of polishing agent is continuously increased. The polishing speed can be increased by increasing the polishing pressure appropriately, but the pressure is too high and the grinding effect is strengthened, which is not conducive to the formation of the glossy surface. The polishing speed depends on the speed of the polishing plate, but if the line speed is too high, the polishing agent will be thrown out, causing waste.


Product Details

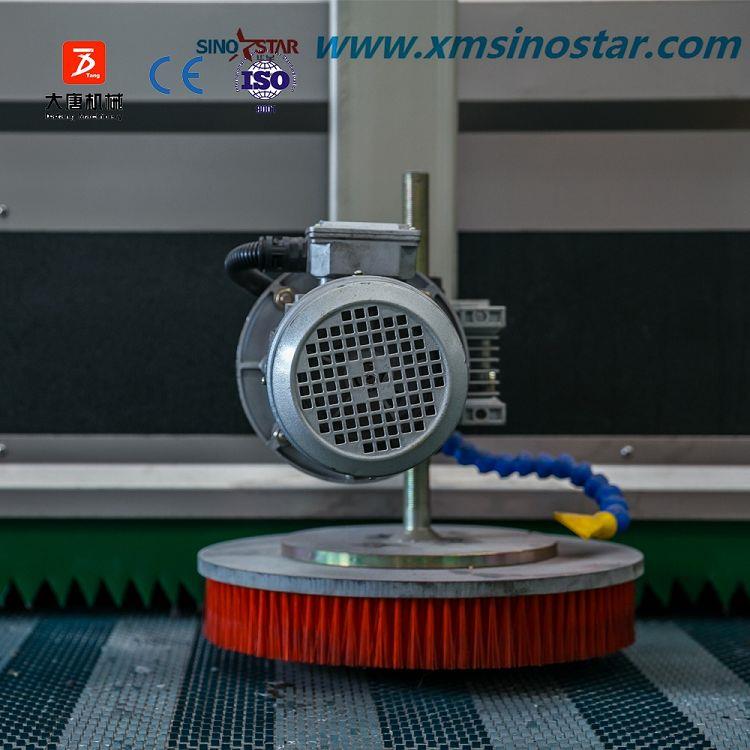

P1-Part of slab polishing machine(001)

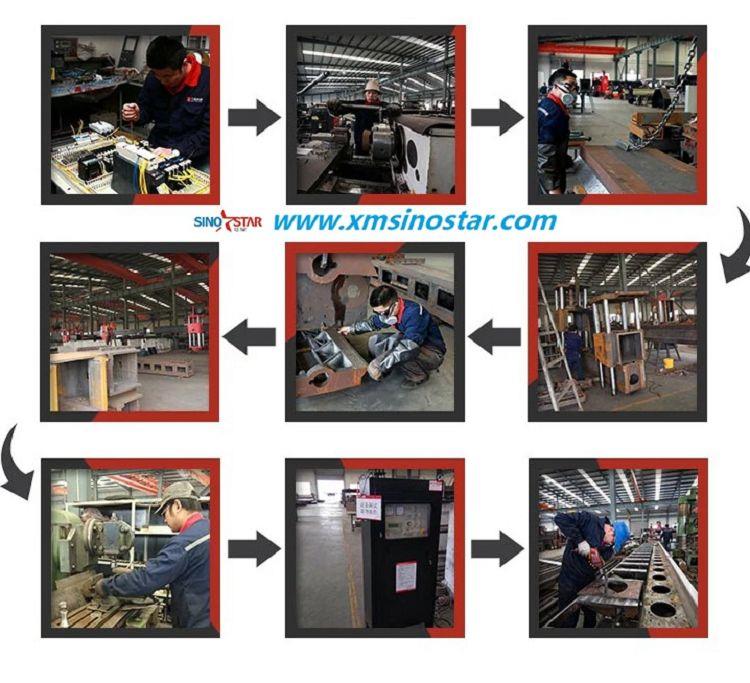

p2-Details Slab Polishing Machiine(001)

Product specifications

Appellation

DTMJ-12-1260

DTMJ-16-1260

DTMJ-20-1260

DTMJ-24-1260

Power of main motor

7.5/10kw

7.5/10kw

7.5/10kw

7.5/10kw

Number of grinding head

12pcs

16pcs

20pcs

24pcs

Velocity of conveyor belt

0-3.5m/min

0-3.5m/min

0-3.5m/min

0-3.5m/min

Max. Polishing width

1260mm

1260mm

1260mm

1260mm

Water consumption

15-20m³/h

15-20m³/h

15-20m³/h

15-20m³/h

Polishing thickness

10-50mm

10-50mm

10-50mm

10-50mm

Total power

95kw

134kw

167kw

202kw

Dimension(L*W*H)

6900*3100*2400

8100*3100*2400

9300*3100*2400

9300*3100*2400
