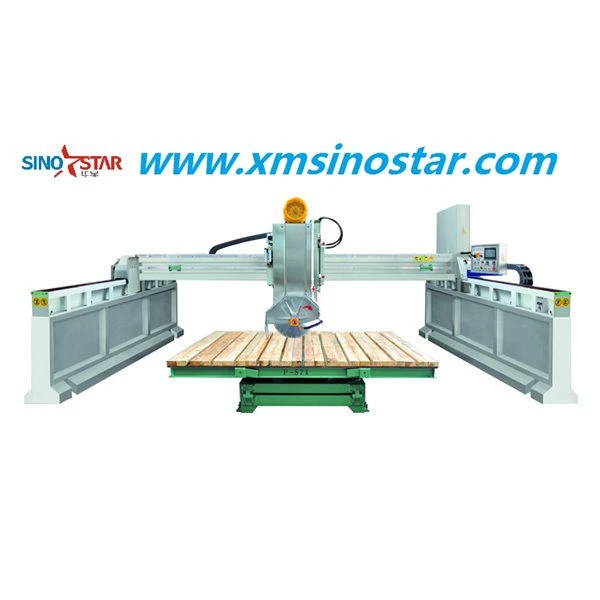

Automatic Slab Cutting Machine

Product Description

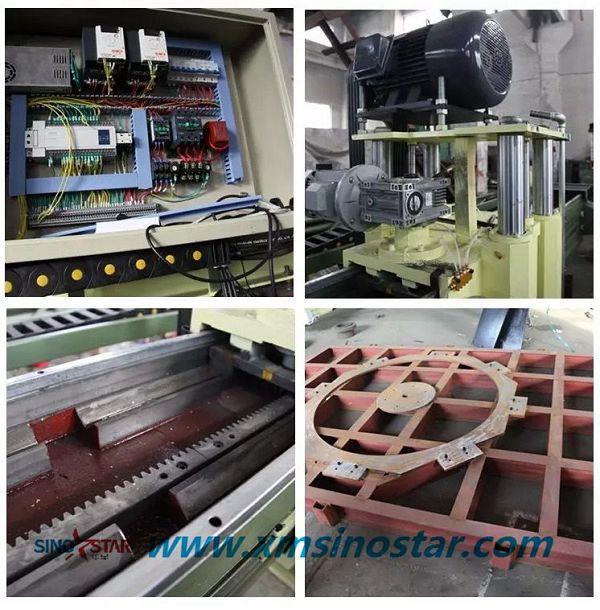

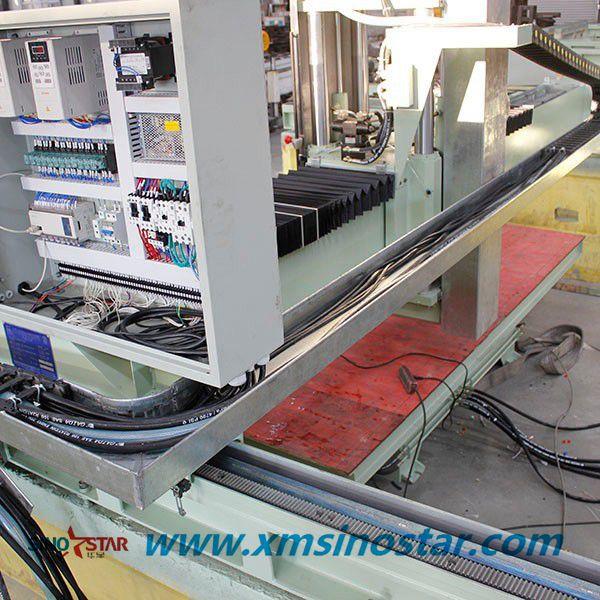

Automatic Slab Cutting Machine is a kind of bridge-type machine for the edge cutting of stone slabs. The main function of this machine is to cut the polished slab into stipulated Standard Size accurately and continuously, there are some important parts of this machine, they are the host part, the lifting part, the slicing part, the worktable, electric control system and Hydraulic system. Different parts have different jobs and they work together to do the slab edge cutting. The cutting speed is much more quickly than manual slab cutter machine. Here are some features of this machine:

1. Mainly used for edge cutting marble, granite, quartz, and other stone materials

2.Complete with oil-immersed guide rail for crossbeam and side beam;

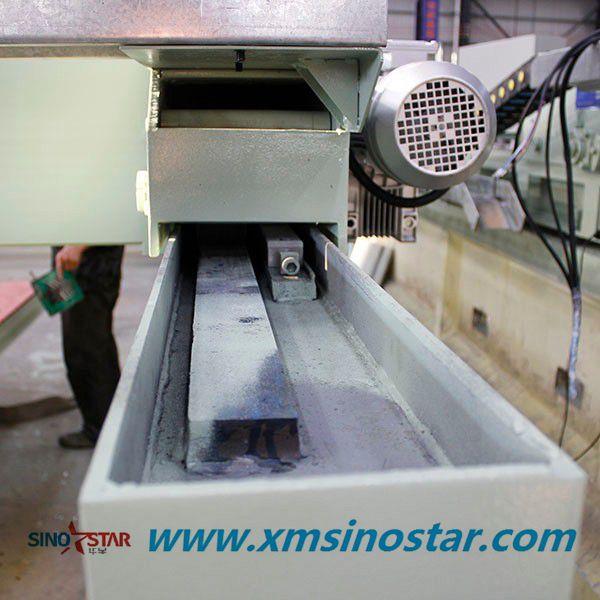

3. Dust-proof slide tracks ensure precise guide movement and long service life;

4. The cutting head of this automatic slab edge cutting machine can move flexibly in three directions (up/down, left/right, forth/back);

5. The rotary table can rotate 0-90°-360°;

6. The blade input speed can be flexibly adjusted by variable frequency adjustable speed system;

7.Complete with an infrared ray cutter aligner for precise cutting;

8.Hydraulic lifting system or screw-rod lifting system (optional);

9. The maximum blade diameter of 700mm is available upon request

Nowadays there are many manufacturers of automatic slab cutting machine in China, they using different raw material and they have different manufacturing technology, so their quality is different. From the development of international stone equipment in recent years, the development trend of automatic slab cutting machine is mainly reflected in three points: First is the development of stone cutting towards high efficiency, such as an increase in the number of saw blades. Second is the development of stone equipment towards automation, such as the wide application of CNC technology in slab cutting machine. The third is the development and application of environmental protection processing equipment such as diamond wire saws and water jet machines.

Product Details

Product Specifications
