Manual Slab Edge Cutting Machine
Product Description

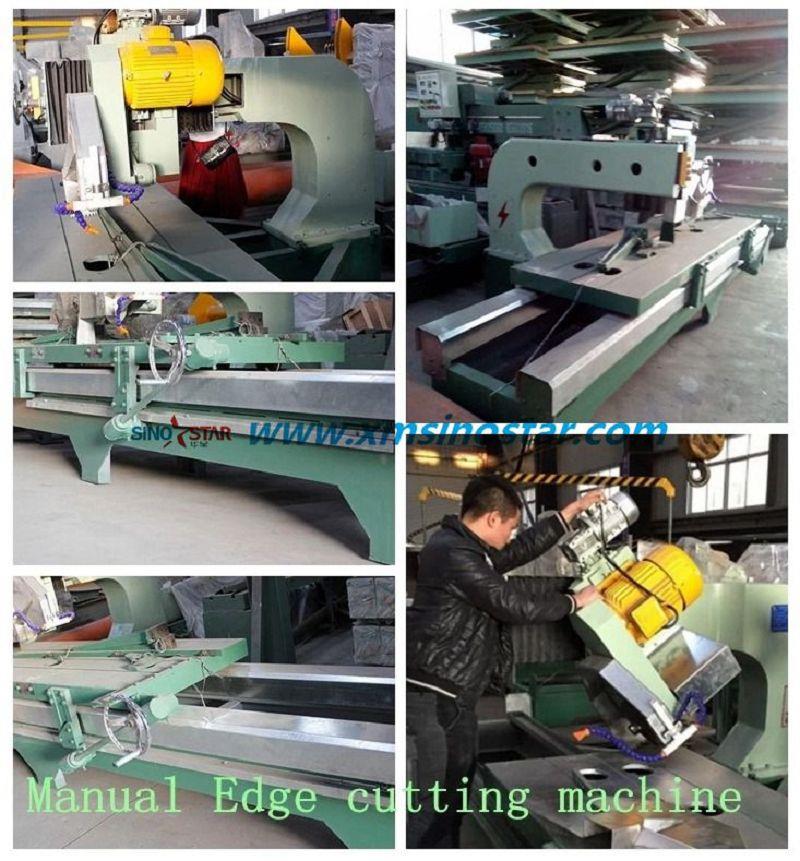

Manual slab edge cutting machine is a hand machine for cutting stone edge. Compared with the automatic bridge saw machine, it is a manual machine. Though the cutting speed and the labor cost of this machine are lower than the automatic machine, the price of this equipment is much cheaper than the automatic one. Besides, this manual stone edge cutting machine can do blade 45-degree tilting.
The machine adopts steel and cast iron structure, man-machine integration mode of operation. The cutting head can tilt 45°. The blade up and down and moving left and right is driving by electric power. Workbench is driven by hand. The whole structure is strong. Stable performance and nice appearance on manual slab edge cutting machine. High efficiency and cutting accuracy. Suitable for cutting small stone slabs, bar, slabs trimming, chamfer and, etc. There are some important tips for installing a manual slab edge cutting machine. Do a good job of cleaning. Cleaning work includes removing residual casting sand, rust, chips and so on. Especially some important parts, such as gantry cutting machines and inner cavity, which should be coated with anti-rust paint.
Oil contamination, rust and adherent chips on the parts can be cleaned with diesel, kerosene or gasoline as a detergent, and then dried with compressed air. The matching dimension of matching parts on manual slab edge cutting machine should be accurate, and the matching dimension should be re-checked or sampled during assembly. For example, spindle journal and bearing matching position, spindle box and bearing matching hole and its center distance. When assembling wheel parts, it is required that the axle centerline of the two teeth combination wheel must be in the same plane and parallel to each other. Normal gear clearance should be guaranteed, and the axial dislocation should be less than 2MM. If the distance is more than 2mm, the product will have too much deviation.
Product Details
Product Specifications
Model | MCQB-600 |
Max blade diameter (mm) | φ600 |
Processing size(mm) | 3000*1100 |
Main power(KW) | 15 |
Water consumption(m³/h) | 3 |
Worktable size(mm) | 3000*750 |
Overall dimensions(mm) | 5500×2200×2250 |
Weight(Kg) | 2800 |
