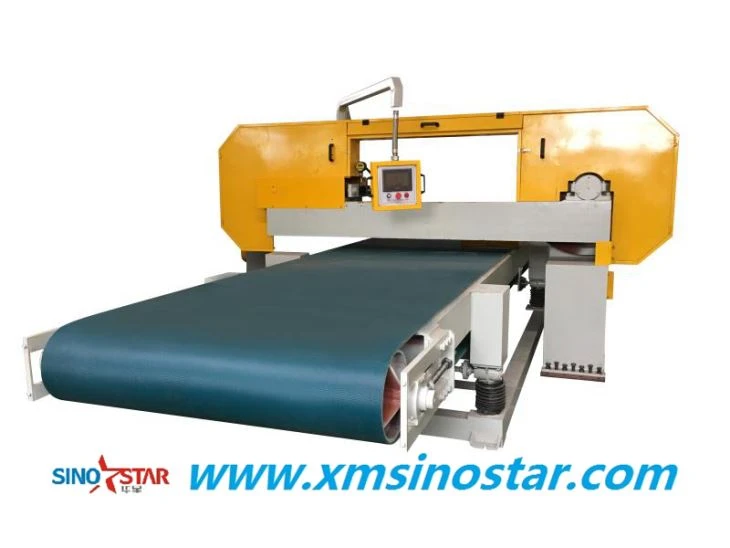

Thin Slab Cutting Machine
Product Description

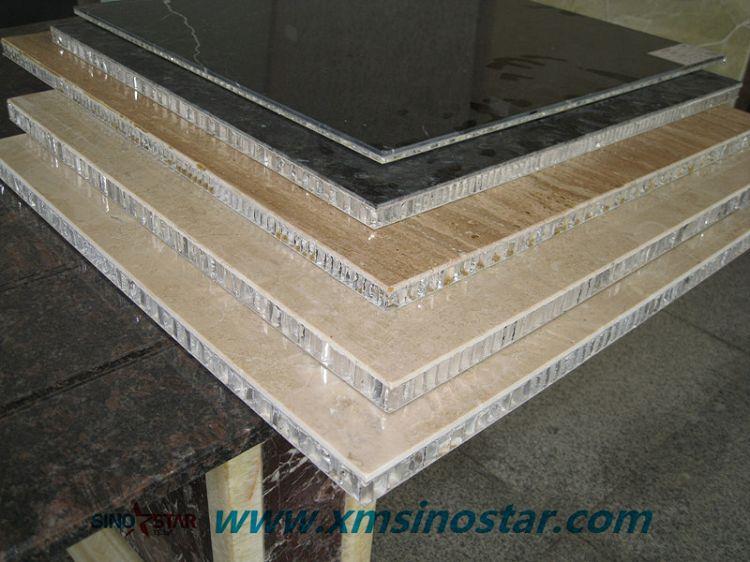

Thin Slab Cutting Machine is another named Thin slab band saw cutter. It is designed to cut slabs at horizontal slicing way. Nowadays, composite slab materials are getting more and more popular in our house decoration. It is a kind of construction material that combines two different materials into one slab, the surface material is natural stone, the body is ceramic tile, stone, glass or aluminum, etc. This thin slab has many features like lightweight, strong and high impact resistance, low pollution and environmental, less color difference, easy to install, etc. When this material is produced by a thin slab cutting machine, it can be installed on many places in house decoration, this thin slab material can be applied for windows, tables, floor, and door, etc.
Before you can get a high-quality composite slab, an important job is to install the thin slab cutting machine. Here I will share something about how to assemble this machine. Fir we need to make the foundation, this is basic work for nearly all stone machine installation. After we make the cement foundation, we will need to wait for one or two days for cement dry. After the cement is getting dry, we will put the machine table on the concrete ground and stick it with the screw. This is the most important step, if something wrong in this step, the thin slab cutting machine will not make precision cutting. After this step, we can make the cable connection, we will send electric drawing when a customer buys a thin slab slicing cutting machine from us. When all is finished, we will need some machine oil, we will need about 15 liters of oil for a thin slab cutting machine, and replace new oil after two or three months later.
Product Details
Product Specifications
Name | Unit | Value |
Max Cutting width | mm | 1650 |
Travel Height | mm | 80 |
Power of main motor | KW | 7.5 |
Output | ㎡/h | 5 |
Total Power | kw | 8.5 |
Max. cutting thickness | mm | 160 |
Blade Thickness | mm | 6 |
Water consumption | m³/h | 3 |
Dimensions(L×W×H) | mm | 3600*5600*1900 |
Weight | kg | 2500 |
