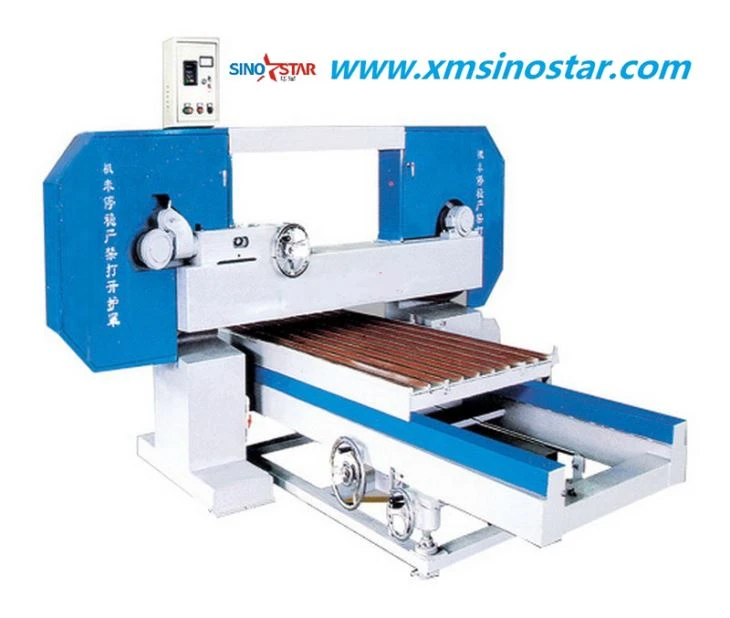

Horizontal Stone Splitting Machine

Horizontal Stone Splitting Machine

Horizontal Stone splitting machine is a band saw cutter for cutting slab or block into thin slab tiles.
Send Inquiry

Product Description

Horizontal Stone splitting machine is a band saw cutter for cutting slab or block into thin slab tiles. There are a lot of stone equipment in all steps of stone processing. If you want to do business in composite slabs, you need a thin slab splitting machine. It is the best choice for your composite material business. This machine is for horizontal splitting the marble or granite slab. To put the slab on the table and use the tool of Belt blade with a diamond tip to split the slab. It is a must machine for working on the super thin stone panel. We are a professional supplier of the stone cutting machine with high quality and reasonable price. Nowadays there are only a few factories in China to provide these stone splitting machines, some in Quanzhou city and some locates in Guangdong province. There are different tables on this machine. Some are conveyor and some are steel tables. According to customer feedback, we know that the conveyor has a better cutting speed because if you use a steel table. The table will go back again before it can put a new slab. Most of the horizontal stone splitting machines are used for cutting marble,


Machine Details

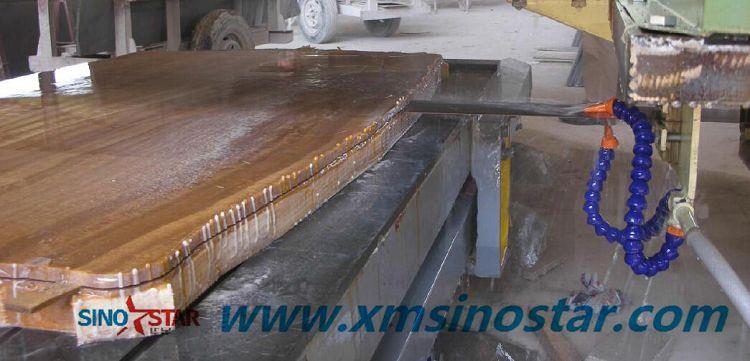

P1-Horizontal Stone Splitting Machine Cutting

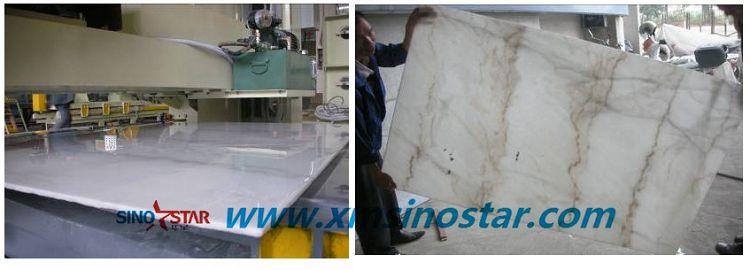

P2-Horizontal Band Saw Machine(001)

Machine Specifications

Item

Unit

Value

Max.cutting width

mm

860

Travel height

mm

80

Main motor power

kw

7.5

Total power

kw

9

Max. cutting thickness

mm

80

Blade Thickness

mm

2

Output

m2/h

3-7

Water consumption

m³/h

1.8

Dimensions(L×W×H)

mm

3200*2500*2100

Weight

kg

1900kg


Our Advantage:

1. Our Wooden Case is after fumigation treatment. Needn't timber inspection, saving shipping time.

2. All the spare parts of the machine were covered by some soft materials, mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process. Then we'll cover plastic wrap out it tightly, make sure intact in the soft covered materials, also avoiding Waterproof and rustproof.

3. The outmost is Wooden Case with Fixed Formwork.

4. The bottom of the wooden case has a firm iron jack, convenient to handling and transport.


Before delivery, we would test all machine functions, and use a standard packing to each configuration. We choose a famous export company and transport company, making shipment more convenient and safer.
