Hydraulic Block Cutting Machine

Product Description

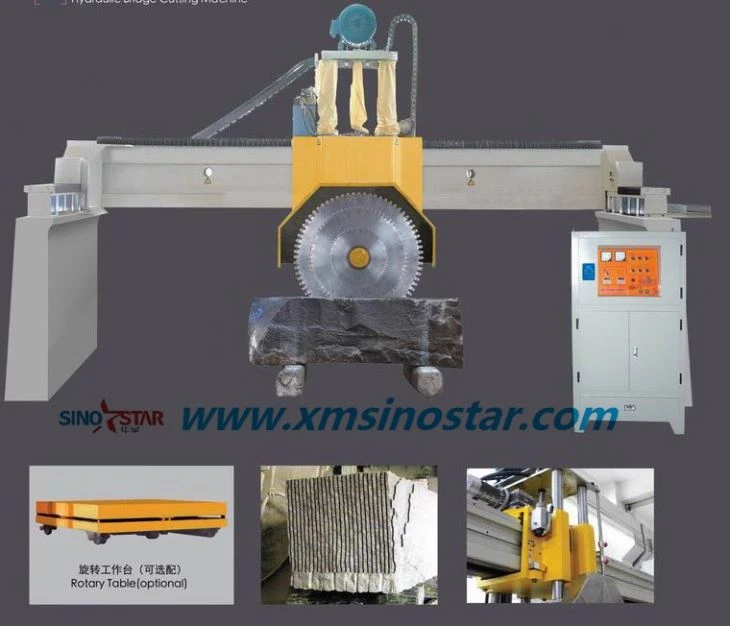

The hydraulic block cutting machine is an equipment to cut the block into slabs. This block cutter machine is your good choice to cut large blocks into a different thickness of slabs. Different from the bridge saw cutter machine, there is not a table for block cutting machines, we can put blocks directly on the ground and let the machine cut. There are four pieces of hydraulic steel pillars on top of the blades. This is an important part of a machine and can ensure the cutting strong and smooth with very stable performance. This is a multi-blades block cutter and you can also make the different distance to cut the different thickness of the slab. There are many models of hydraulic block cutter, some are with a max 3000mm diameter blade and some are only 2000mm blade, it depends on the block sizes.

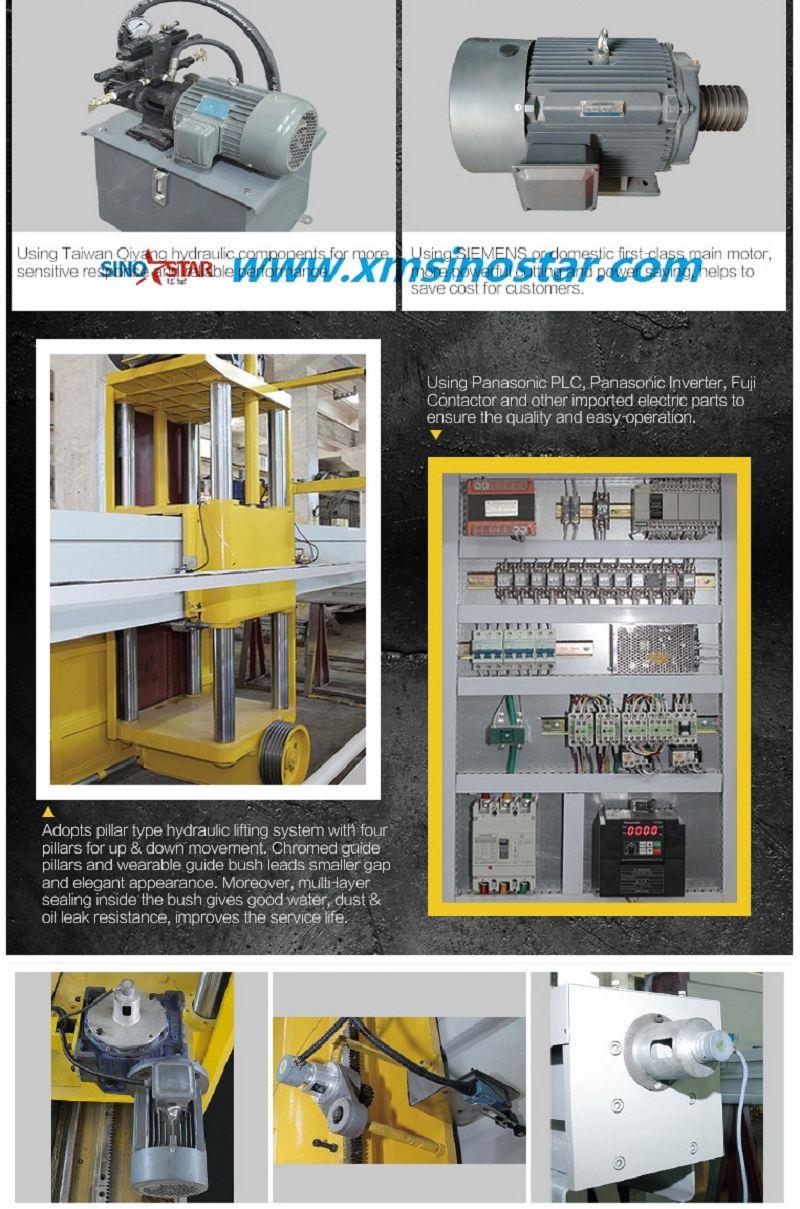

This multi-blade block cutting machine uses the inverter to control left-right feeding adjusts the speed according to the stone material. It uses a hydraulic lifting system(screw lifting system*optional), forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials. The block can be placed on the ground directly to save the worktable and its maintenance costs. Thus the whole machine is featured as high cutting efficiency, high slicing precision, the flatness of the plate after cutting, high stability, easy-operating to suit especially cutting granite and marble block with high value. After we finish installing the machine, we need to check the working conditions of this hydraulic block cutting machine. We should check according to the acceptance conditions of various stone machinery products, the trial operation is carried out and the related items are tested. For example, the adjustment and test of tool speed and stroke, the adjustment of lifting motion stroke, the test of spindle rotation accuracy, etc. Since this is a multi-blade machine for block cutting, we can make a different blade configuration to meet different cutting demand. We can put 2500mm blade and 1200mm blade and other sizes of the blade for cutting the different size of block materials.

Product Details

Product Specifications
