Bridge Cutter Machine
Product Description

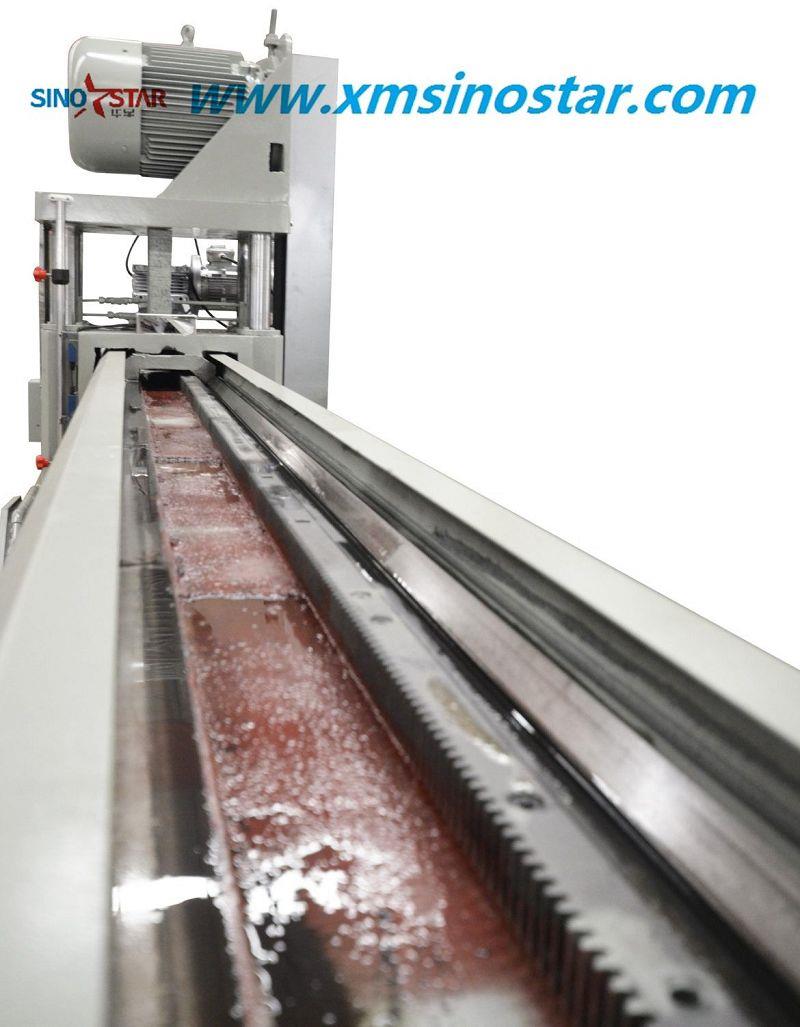

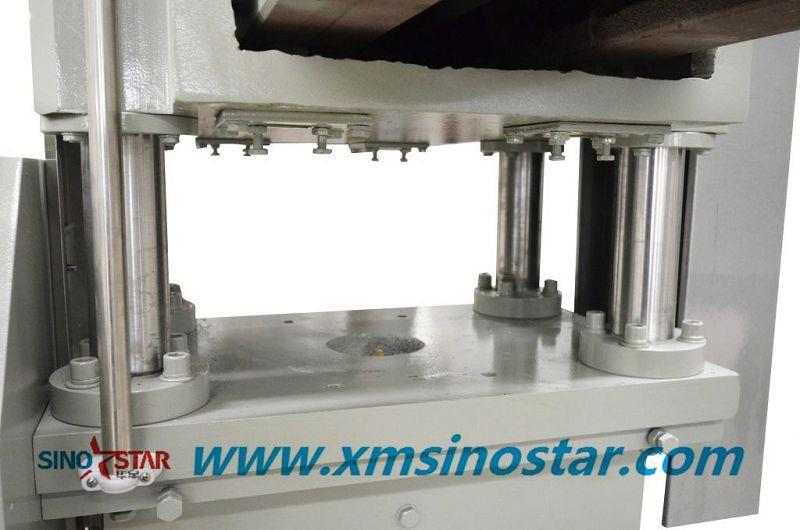

Bridge Cutter machine is also named bridge cutting machine, bridge cutter machine. This machine is used to cutting slab into small pieces with full automatic for materials such as marble, granite, and other stones. As a professional manufacturer, here we give some introductions about this machine. Automatic bridge cutter machine is designed with high-quality raw materials. This machine combined with a 400mm blade, we have also 600mm blade. The max size of this machine can cut is L*W*H=3200*2000*190mm, This machine blade can go up and down with max 200mm, and the whole bridge part can moving left-right smoothly and stable. The side beam of this machine is designed with screw guides which is very precision even many years working. It can cut many kinds of stone materials such as marble granite quartz and others. The table of this bridge cutter machine can rotate at 90 degrees or 360 degrees automatic, and it can move up 85 degrees for slab loading and unloading. Some customers may buy another jib crane machine to work with this machine.
It is really an easy job to operate the bridge cutter machine, on the side part of the machine you can find a computer screen, customers can type the size of the slab which you are going to cut like 600*600mm or 400*500mm, etc. You can max set 10 groups of size on the computer screen. After you confirm the cutting size on the computer screen, you will have to set the blade at the slab, in this part we can use a manual model and drive the blade to be close the slab and then you press the start button to let the machine do the cutting. After one side cutting, you may need to cut another side, you just need to make the table rotation and turn slab into another side and then continue to cutting.
Product Details
Product Specifications
Model | XGM-400 | XGM-600 | XGM-700 |
Max blade diameter (mm) | φ400 | φ600 | φ700 |
Max cutting height(mm) | 70 | 180 | 230 |
Worktable rotation range | 90 degree or 360 degree | ||
Main motor power(KW) | 15 | 18.5 | 22 |
Worktable size(mm) | 3200*2000 | 3200*2000 | 3200*2000 |
Overall dimensions(mm) | 6000×4800×3000 | 6000×4800×3200 | 6000×4800×3400 |
Weight(Kg) | 5700 | 5800 | 5900 |
FAQ
1. What is the daily output of this machine?
The cutting speed of this machine is different base on different materials. It can cut normally 80-120 sqm in one day base on 8 hours of working time.
2. How can you guarantee your product quality?
We have a very strict quality system during all the steps of our production. From raw materials to final products, we take our hard to check all the details. And we will test the machine to make sure everything is going well before we ship it out.
3. What if there is some issue when I am using the machine?
We provide good after services to our customers, you can get in out with us through email or telephone. We provide all the necessary support to help our customers to fix the problem. Or we can send an engineer to the client's factory to fix the issue.
