Marble Granite Slab Cutting Machine
Product Description

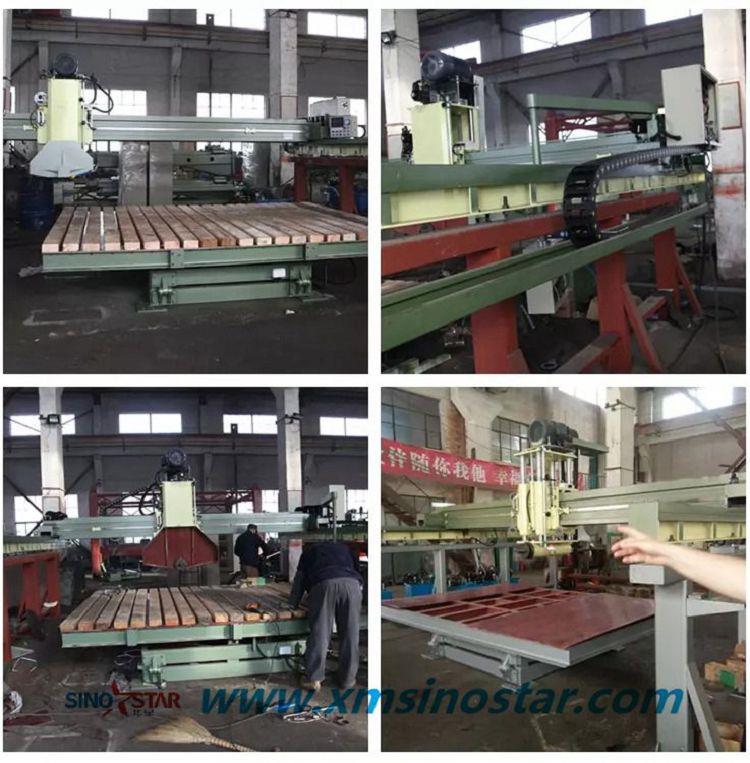

Marble granite slab cutting machine is a kind of saw machine that running on two bridge side beams, the main motor is set on top of the machine head, the blade is driving by this motor and it goes up and down, left and right to cut marble and granite slabs. A set of infrared laser light is installed on the side part of the machine, a function of the laser light is to set the blade with marble granite slab to let the operator know where the blade cutting now. Since there is a computer screen on the machine, so it can cut automatically. We just set the size of the slab and let machine cutting. The bridge saw machine is the ideal equipment for cutting marble and granite slab. We can cut about 80-120 square meters per day with this machine or even more. In recent years, some machine factories have designed advance machines that can do multi-functions. These tilting bridge saw machine can make 45-degree tilting and 90-degree rotation, it increases cutting efficiency and reduce labor cost for stone factories.
When a customer buys a slab machine to cut marble and granite, he needs to install it before he can run the machine. So we need to know some important points about machine installation. First, we need to do is to make a foundation. The function of a machine foundation is to set the machine on it. The bridge saw machine foundation is made by cementing and the minimum thickness of the floor should be at least 10cm. Customer can make cement wall according to our drawing, and we can fix two bridge side parts on these two walls. After the foundation is finished, we need to connect the bridge saw machine cables, it is very easy for an electrician to make the job because we will also have an electric drawing. Lubrication oil is also an important job for machine installation. We should add different kinds of lubrication oil on the bridge part and table hydraulic part.
Product Details
Product Specification
Diameter of blade | 400-700mm |
Max.cutting size(L*W*H) | 3200*2000*200mm |
Work table size(L*W) | 3200*2000mm |
Worktable rotation degree | 0-90°/0-360° |
Worktable turn-over degree | 0-85° |
Main motor power | 15kw |
Dimension(L*W*H) | 6000*4800*3150mm |
Weight | 6500kg |

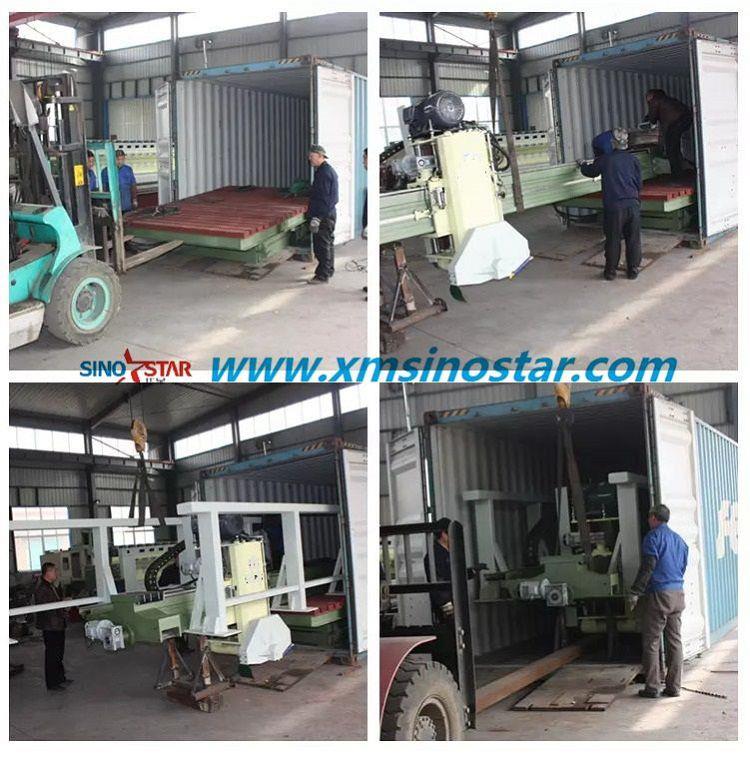

Product Packing and Loading
