CNC Stone Profiling Shaping Machine

Product Description

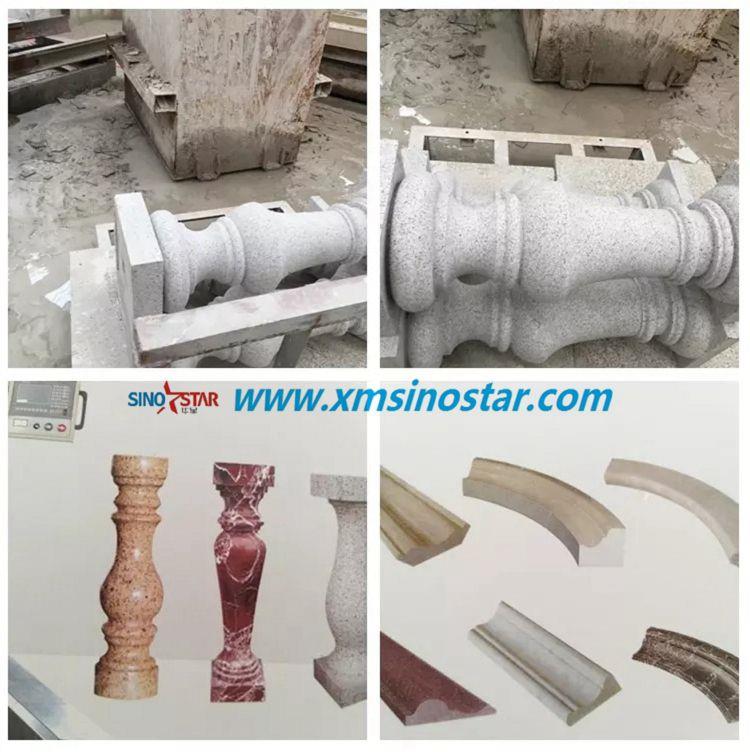

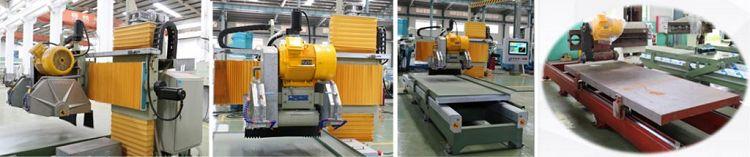

CNC Stone Profiling Machine is an equipment used for copy shaping marble and granite stone. It is simple and easy to operate the machine. First, you need to check the size of stone materials and then fix it on the machine table. Second, you can set the CAD coding on a computer. You should make the drawing according to the stone size and final size which you are going to profile. If the machine is a regular type of stone profiling machine without CNC function, you just only put profiling molds on side of the machine. After this step, what we need to do is to set the blade. We will have to set the blade of left side and right side and up and down. This machine is a multi-function stone profiling equipment. It absorbs the technology of automatic equipment at home and abroad. It adopts the computer copying optical fiber tracking. It has the functions of automatic copying stone wire processing, plate cutting and so on. It can also process square pillars. Compared with the traditional profiling machine controlled by PLC, this machine has the following advantages.

1. No need to make a model by hand, directly through two-dimensional CNC system to finish profiling stones into different shape of stone line

2. The machine has higher processing accuracy & productivity than the traditional profiling machine.

The CNC stone profiling machine has the following characteristics:

1. Lengthen the cross beam to increase the cutting width to 1200mm.

2. Increase the lifting motor to realize the electric lifting.

3. Increase the transverse motor to realize the electric transverse movement.

4. Increase the saw blade shield and the power of the main motor, and can use 400mm to 600mm saw blades, profiling slabs below 180mm, etc.

5. Increase the pulleys with different diameters and can be interchanged to adapt to the rotational speed of saw blades with different diameters.

6. To lengthen the spindle. The machine has the functions of secant and grooving.

7. The workbench of this CNC stone profiling machine is connected with the main engine on the basis of the original oil-immersed guide rail, so that the machine does not need a specific foundation to install, only needs to select a flat concrete structure ground to be placed and adjusted slightly. It is more convenient to relocate and install.

8. It is more convenient to operate by using button station control.

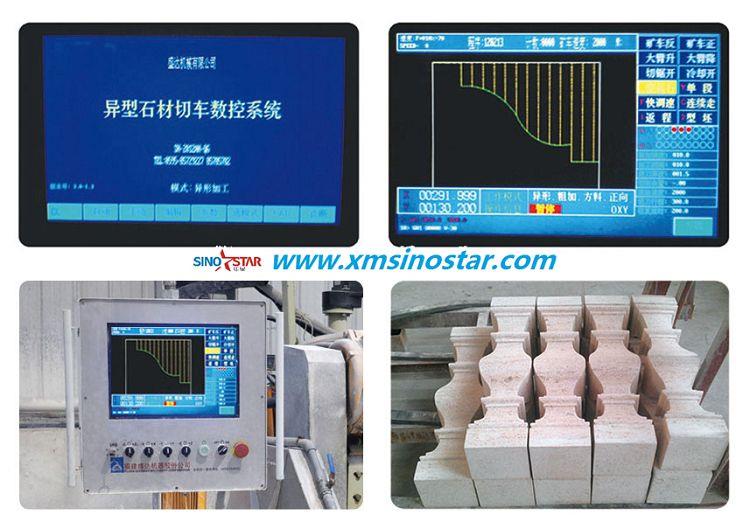

Product Details

Product Specifications
