CNC 5 Axis Bridge Saw Machine
Product Description
CNC 5 Axis Bridge Saw Machine is a high tech of stone saw machine. We develop this machine base on the PC system with 5 axis cutting system. The stone takes a more and more important role in our life, people have more and more requests for stone processing. Here this CNC 5 axis bridge saw machine come out to meet nearly all stone processing requests.It can not only do cutting but also can do engraving, grinding and profiling, etc.
The blade can rotate 720 degrees and stop and any degree. And we can replace the tools to do different processing. Customer can edit a CAD drawing or insert the CAD drawing from USB and it can make a cutting demo on computer. You can stop the machine and change the order parameter during machine running, after that, you can select to make the machine to start cutting from the beginning or continue cutting base on previous cutting. We can change or edit the running parameter at any time and the machine will automatically generate new coding. This CNC bridge saw machine is very suitable for processing high precision products.It is a monoblock 5 axis bridge saw the machine and we can control it online. When there is an issue we can connect with the engineer and ask for help very easily. The max saw blade is 600mm.

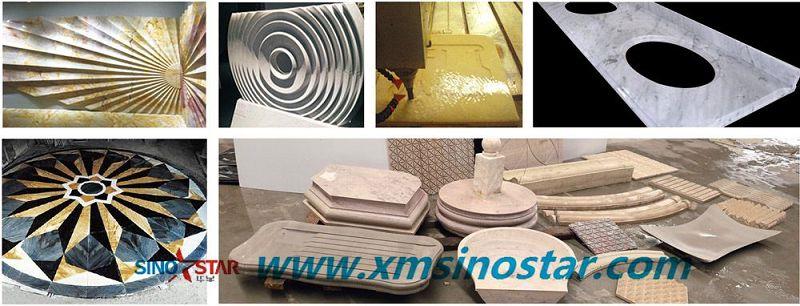

Compare with other regular bridge cutter machine, this CNC Bridge saw machine adopts some high tech parts like server motor and line guide devices, this advance part makes machine cutting very smooth and precision. Functions of 5 AXIS bridge cutting machine included: all kinds of stone lines design, arc- edge, French edge, straight edge, bevel edge, abnormal edge, antiskid slot, dry-hang, washbasin processing and so on. Multi-function, Cover small area, Low energy consumption, Simple operation, Accurate processing, the easy and fast transformation between different functions. This makes 5 AXIS bridge cutting machine a sharp weapon for stone processing enterprises.

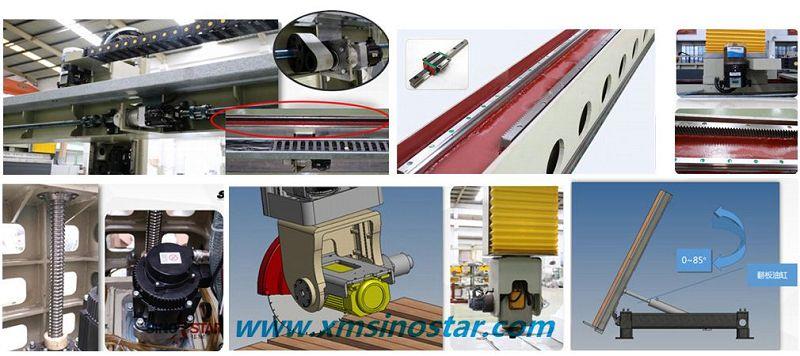

Product Details
Product Specifications
X axis stroke | 3000mm |
Y axis stroke | 2000mm |
Z axis stroke | 500/700mm |
A axis stroke | 0-90 ° |
C axis stroke | ±185° |
Dia of disc | 450/600mm |
Rotation speed of disc | 3000/6000rpm |
Table size(lenth*width) | 3000*2000mm |
Table titlting degree | 0-85° |
Main motor power | 18kw |
Total power | 33kw |
Water consumption | 4m³/h |
Total weight | 7500kg |
Outer dimension | 6000*5000*3500mm |

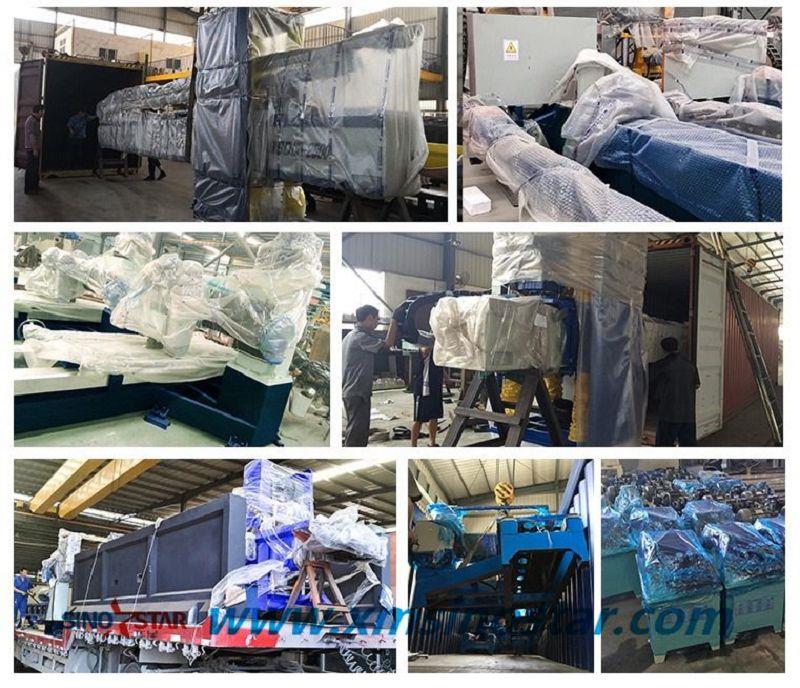

Product Loading & Packing
