All in One Bridge Saw Machine

All in One Bridge Saw Machine

All In One Bridge Saw Machine is a kind of miter saw machine which blade can tilting 45 degree and rotation 90 degree.Nowadays this kind of miter bridge saw machine is getting more and more popular.
Send Inquiry

Product Description

All In One Bridge Saw Machine is a kind of miter saw machine which blade can tilt 45 degrees and rotate 90 degrees. Nowadays this kind of miter bridge saw machine is becoming more and more popular. The machine is a multi-function stone cutter machine, the blade can tilt 45 in vertical and can rotation 90 in horizontal, what is more, this machine can do profile with model installs on the side beam of the machine. So we call it all in one bridge saw machine. This machine is designed to meet customers with different kinds of cutting request. It can save cutting costs and high efficiency. We take a strict quality system during all the steps of our production. We know the main material of the machine is iron steel materials, we work with many iron steel supplier and we take raw materials from them with top-class quality. Especially for the bridge part materials, if the quality of the bridge part material is poor, the part will be out of shape after one or two years cutting. Another important raw material for all in one bridge saw machine is electric components. There are many electric components on the bridge cutter machine, we can find electric components like PLC, converter, encoders, computer screen, and other buttons and switch. We purchase all these parts from top brand suppliers. Before we ship out all in one bridge saw machine, we should test all of its functions in our factory to make sure all functions of stone saw machine are running well. When customers receive the machine, we can send a user manual to the customer for machine installing. Also, we can send an engineer to the client factory for machine training if there is a need. The client should pay all these costs if they need someone from us to make the training of the all in one bridge saw machine. They will have to pay air tickets, hotels,food, etc.



Product Details

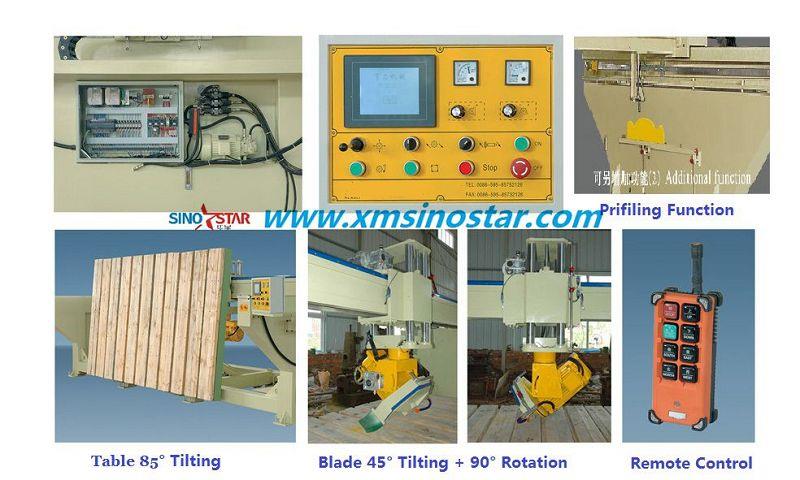

P1-All In One Bridge Saw(001)

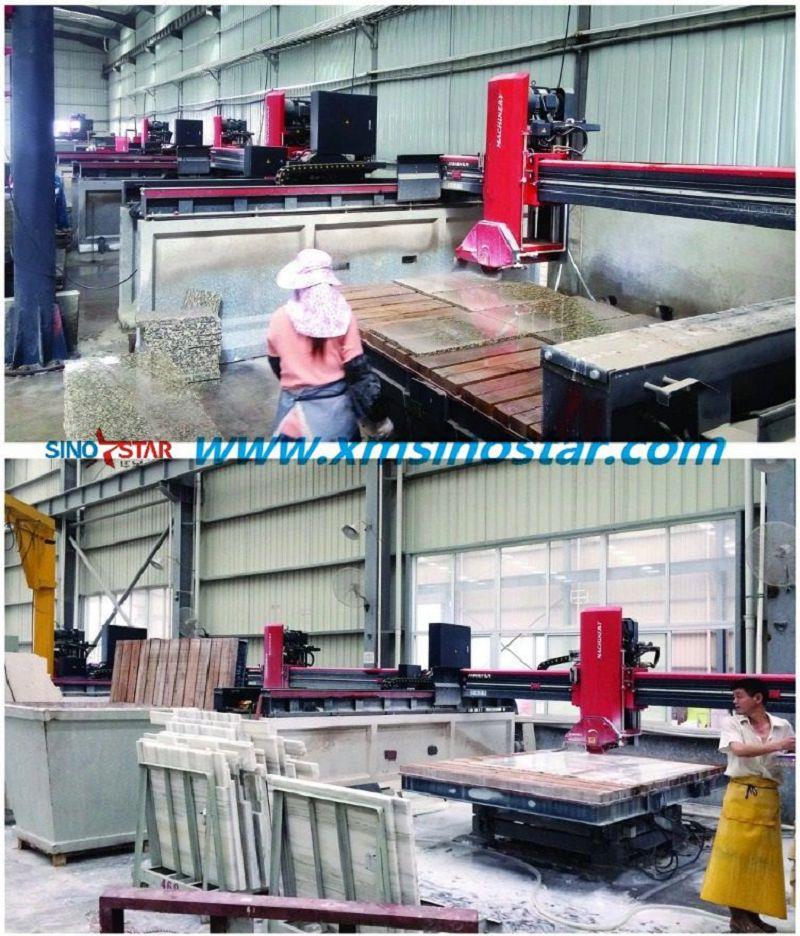

P2-All In One Stone Bridge Saw(001)


Product Specifications

Blade Diameter

350-400mm

Blade up and down

350mm

Max travel of direct/cross cutting

3100*2050mm

Dimension of table

L*W=2950*1950mm

Total power

23.3KW

Machine dimension

L*W*H=6200*3300*2500mm

Total Weight

5.5 ton
