Granite Saw for Stone Cutting
Product Description
We offer high quality Granite Bridge Saw for stone cutting with good quality and competitive prices. This saw machine can cut both marble and granite. We have exported this model to a lot of countries and we got very good feedback from customers. Features of this stone bridge saw machine for sale are as follows:

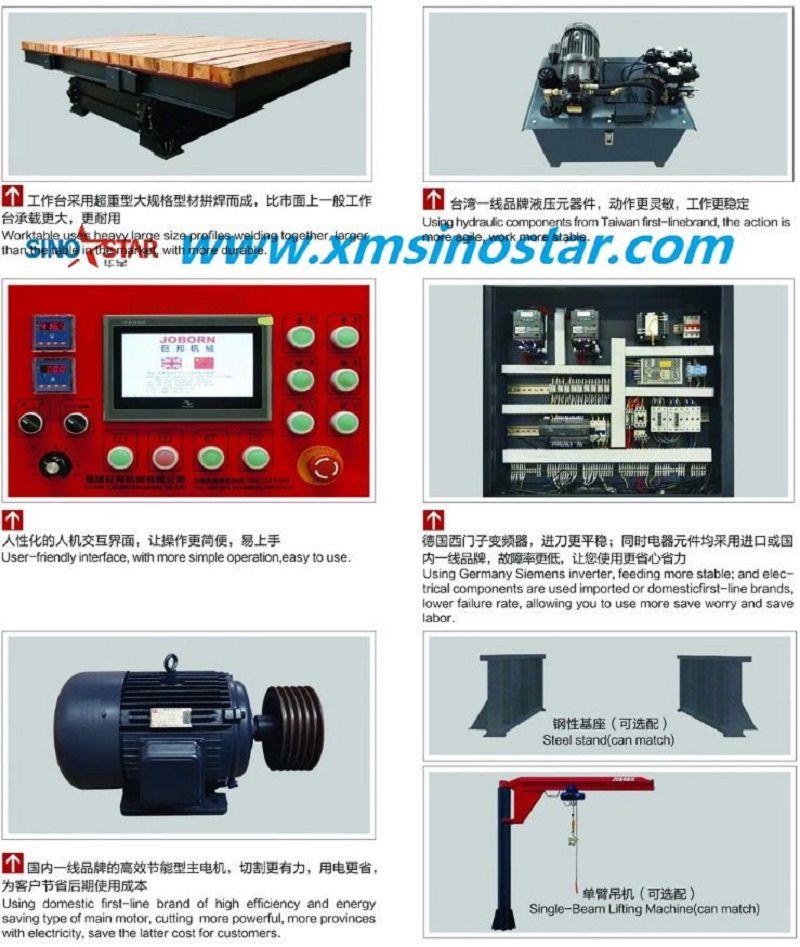

1. Good quality steel is used as the mechanical parts and reliable imported electric parts are used to guarantee high reliability & durability.
2. Precise:
a, Crossbeam movement(Y-axis) along linear guideway with high precision.
b, Z-axis movement by the lead screw.
c, Magnetic ruler is adopted for slicing measure.
d, Laser device for accurate alignment.
3. Use-friendly:
a, Touch screen control panel and all 3D movement are controlled by microcomputer to realize automatic operation available.
b, Both manual and automatic operations available.
c, Worktable can rotate 90° or 360°(optional).
4. Multi-functional:
With an optional sensor, profiling function can be added.
Product Details
Product Specifications
Product name | Infrared Bridge Saw cutting machine |
Blade diameter | 600 |
Max.working dimensions (L*W*H) | 3200*2000*200 mm |
Workbench dimensions (L*W) | 3200*2000 mm |
Workbench tilting degree | 85° |
Workbench rotating degree | 90 degree |
Main motor power | 18.5 kw |
Water consumption | 3.5 m3/h |
Machine weight | 6800 kg |
Dimension | 5800*4800*3200 mm |
1. Do you have more stone machines?
Yes, we can produce all series of stone processing machines with competitive price and high quality Homemade Granite Stone Cutting Machine Bridge Saw is one of our machines.
2. Where is your factory
Our factory locates in Jinjiang City where is the hometown of the stone machine. It is 1.5 hours fly trip from Shanghai, 40 minutes from Xiamen.
3. Do you have an agent?
We don't have an agent as we all sell directly to our customer, in this way, the customer can get the lowest cost.
4. How much is this machine?
Please tell me your stone is granite or marble, the size, your destination port so that I can quote you best price
5. How long can I get my product?
Normally it takes 25 days to produce our products
