Automatic Bridge Saw Machine

Automatic Bridge Saw Machine

A tilting bridge saw machine is also called miter bridge cutter or angle cutting stone saw machine. Compare with other bridge cutter machine,this machine is our new designed machine,it has a better performance on cutting speed and labor cost.
Send Inquiry

Product Description

A tilting bridge saw machine is also called miter bridge cutter or angle cutting stone saw machine. Compared with other bridge cutter machines, this newly designed machine has a better performance on cutting speed and labor costs. The 45° tilting cutting function is different from other models. It is miter sawing from the whole machine head, which is a very reliable system and our customers like it so much. It can automatically tilt 45 degrees and also can stop at any angle. The table of this saw machine can turn over for 85 degrees and rotate at 90/360 degrees. In the Industrial Revolution, people processed stone materials by hand. It was not until the 19th century that the first automatic bridge saw machine was come out in Europe, which laid a new revolution in the stone cutting industry. From then on, stone processing began to develop from manual operation to mechanization. With the development of bridge saw machine and tools, there are more and more designs of stone machinery. There are many different designs of stone equipment for different purposes of stone processing steps, now we have full solutions for all steps of the stone industry like cutting, grinding, polishing, engraving, etc. All these can be done with fully automatic.


Product Details

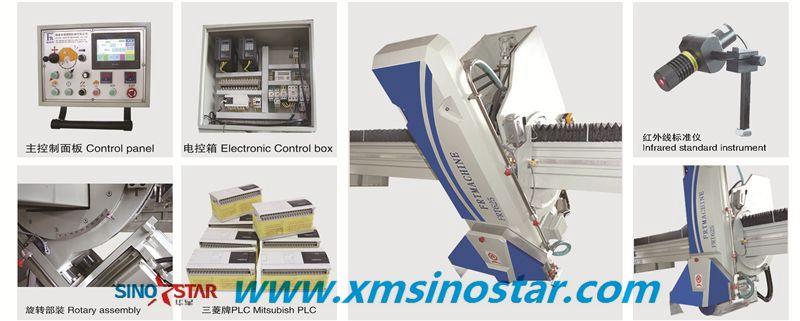

P1-Bridge Saw Machine Tilting Details

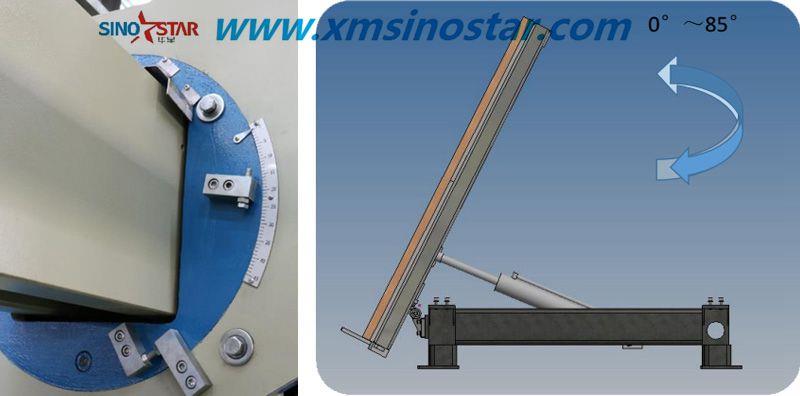

P2-Bridge-Saw-Machine-45-tilting-


Product Specifications

TYPE

Unit

MCZR-625

Blade diameter

mm

300-625

Max.Cutting(L*W*H)

mm

3200*2000*180

Blade Tilting

45

Size of Table

mm

3200*2000

Workbench tilting degree

0°-85°

workbench rotating degree

0°-360°

Main motor power

kw

18.5

Gross power

kw

23.7

Water consumption

m3/h

4

Dimension(L*W*H)

mm

6000*4800*2800


FAQ

1. Manufacturer Profiles

We are a professional Tilting Bridge Saw machine manufacturer with ISO & CE certificate. We own a big percentage of China market share with special shape stone cutting machine series. We are a company which is specialized in producing stone machines for exporting.

2. Quality Control

We have our own experienced QC. Our machine will be strictly inspected. We will provide a Testing Video for each machine before shipping out if required by customers.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have a year warranty.

5. After Services

Our marketing team will respond to your question within 24 hours. Technical support will be available at any time. Free replacement will provide once the failure confirmed caused by our product quality.
