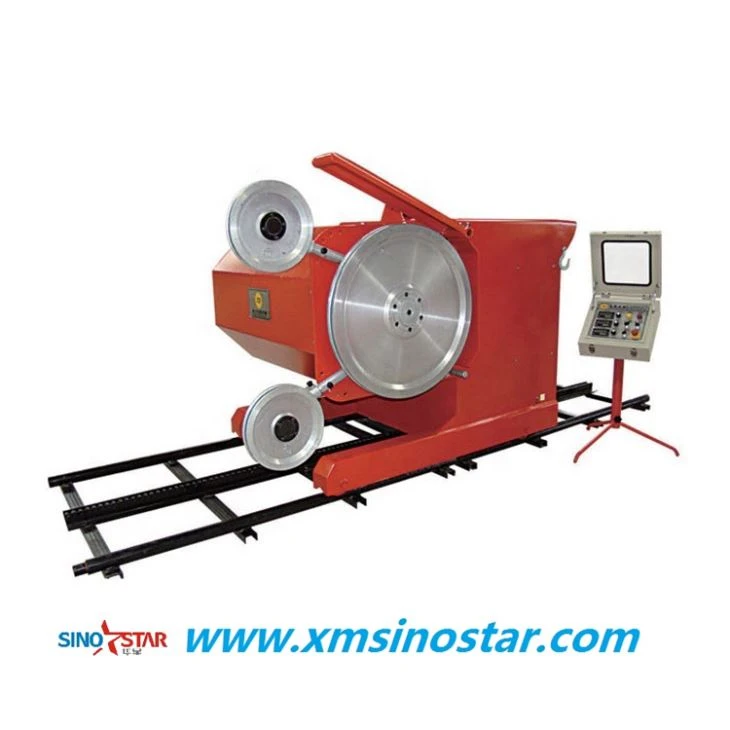

Wire Saw Machine for Quarry Cutting

Wire Saw Machine for Quarry Cutting

Before time people using bomb explosive ways.The new technology diamond wire saw machine is getting more and more popular at present since the old ways is cause more and more problems,the explosive ways result in a serious environment issue and time wastage.
Send Inquiry

Product description

Before time people using bomb explosive ways. The new technology diamond wire saw machine is getting more and more popular at present since the old ways are causing more and more problems. The explosive ways result in a serious environmental issue and time wastage. As the diamond wire saw manufacturing technology is getting more and more stable, there are many factories in the world who can produce good quality diamond wire saw,in this case it indicates that using wire saw machine to cutting quarry come to possible, which will definitely bring a revolutionary progress steps to improve stone quarry cutting. Compared with traditional flame plus explosive ways, the diamond wire saw quarry cutting way have the following features:

1: The diamond wire saw machines are suitable for nearly all types of quarry cutting while the flame cutting works only for some special quarries.

2: Cutting depth of diamond wire saw can be 20 meters even more but flame ways can only within 10 meters. And the cutting speed of the wire saw machine is about 2 or 3 times faster than the flame mining way.

3: The diamond wire saw machine can make angle cuttings like horizontal, vertical and tilting cut while flame can do the only straight cutting.

4: The cost of the wire saw machine is much lower than flame cutting. The edge and surface of blocks which made by wire saw machine is very smooth and the cutting gap is only 11mm. The flame cutting is not smooth and low speed and the cutting gap is about 100-300mm

5: It is much more safety to use a diamond wire saw machine rather than flame cutting. There are not many sounds to use a diamond wire saw machine and its automatic quarry cutting.

In a word, it is the best way to use a diamond wire saw machine to mine marble and granite quarry.


Product Details

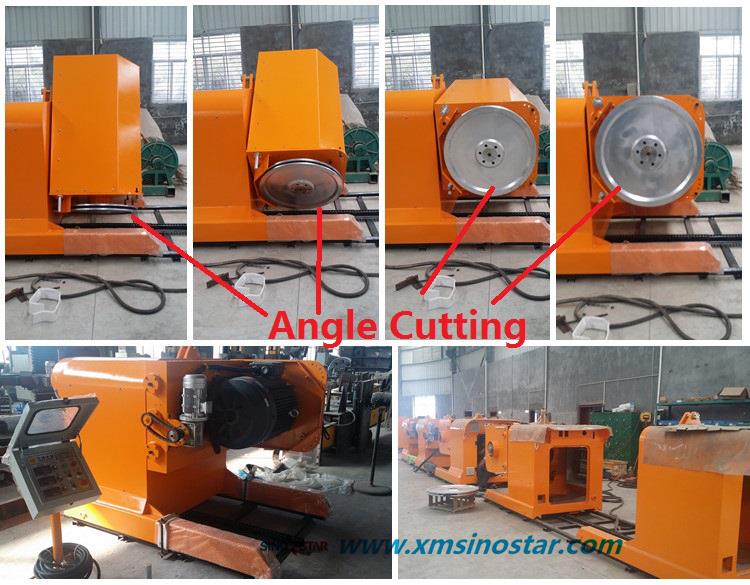

P1-Diamond Wire Saw Machine for quarry mining

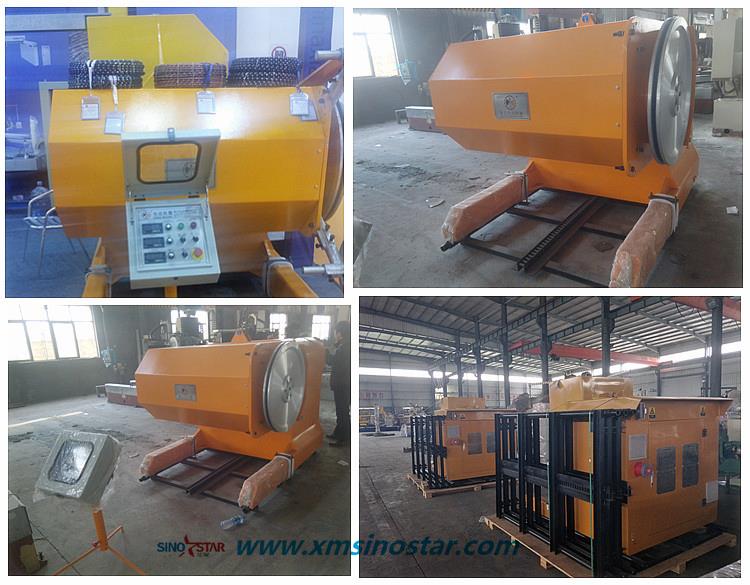

P2-Marble Wire Saw machine quarry block cutting

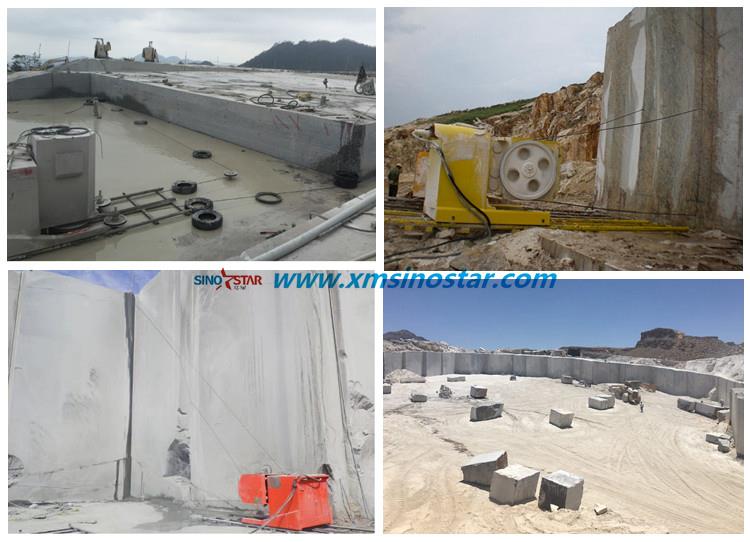

p3-granite diamond wire saw cutting


Product specifications

Model

XFSJ-45AX-6P

Main Motor Power

45 kw

Travel motor power

0.75 kw

Shifting cutting head motor power

1.1 kw

Leng of Wire

20-100

Line Speed

0-40 m/s

Cutting Head Rotation

360°

Power supply

380V-460V/60HZ
