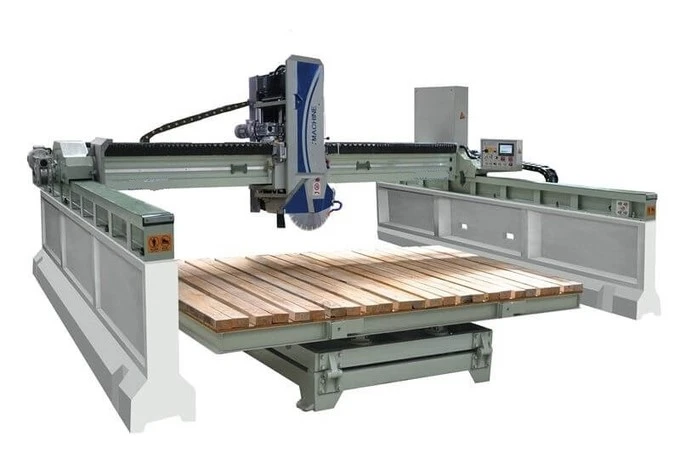

Stone Edge Cutting Machine

what is stone edge cutting machine

Stone slab edge cutting machine is a specialized piece of equipment used in the fabrication of stone materials like granite, marble, and other natural stones. These machines are designed to cut the edges of stone slabs to specific sizes and shapes, preparing them for use in various construction and decorative applications such as countertops, tiles, and facades.

The edge cutting machines can vary in size and function, with some being manual or semi-automatic, while others are fully automated with computer numerical control (CNC) for precision cutting. They typically feature a heavy-duty base to support the stone slab, a movable cutting head equipped with diamond-tipped blades for cutting through stone, and guides or rails to ensure straight and accurate cuts.

Operators can adjust the machine to make various types of cuts, such as straight edges, bevels, or profiles, depending on the requirements of the project. Safety is a critical consideration when using these machines due to the risks associated with cutting hard materials and the potential for flying debris. Users must follow proper safety protocols and wear protective gear.

Features of stone edge cutting machine

The features of a stone slab edge cutting machine can vary depending on the specific model and manufacturer, but here are some common features you might find on such a machine:

1. Cutting Head: The cutting head usually contains a diamond-tipped circular saw blade, which is capable of slicing through hard stone. The head can typically be tilted to make bevel cuts in addition to straight cuts.

2. Adjustable Controls: Many machines have adjustable controls for setting the depth and angle of the cut, allowing for a variety of edge profiles.

3. Water Cooling System: To prevent overheating and reduce dust, these machines often have a water cooling system that sprays water onto the blade and stone during the cutting process.

4. Guide Rails or Laser Guides: These assist in making precise, straight cuts and can sometimes be adjusted for cutting at various angles.

5. Motor Power: The motor's power can affect how quickly and effectively the machine cuts through stone. More powerful motors can handle harder stone materials and larger slabs.

6. Automation: Higher-end models may include CNC technology, which allows for automated and highly precise cutting based on pre-programmed designs.

7. Safety Features: Safety features may include emergency stop buttons, protective covers over the cutting blade, and ergonomic controls to minimize operator fatigue.

8. Dust Collection System: Some machines have built-in dust collection systems to manage the dust created during the cutting process, which is important for both health and cleanliness.

9. Portability: Smaller models might offer portability features such as wheels or a compact design for easy movement around a workshop or job site.

10. Material Support: Large, sturdy tables or rollers that support the stone slab during cutting are crucial for stability and accuracy.

11. Durability: Built to withstand the rigors of cutting stone, these machines are typically constructed from heavy-duty materials like stainless steel or cast iron.

12. Ease of Maintenance: Components that are easy to clean and replace can make maintenance simpler, reducing downtime.

When considering a stone slab edge cutting machine for purchase or use, it's important to review these features in detail to ensure that the machine meets the specific needs of your projects.

Benefits of stone edge cutting machine

1, Controlled by PLC, operated expediently,accurately and stably
2,The support guide way adopts the imported linear guide way to make sure high precision and long life.
3, The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of
imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability
of the whole machine.

Specifications of stone edge cutting machine

Parameter	Unit	MCQJ-450	MCQJ-600	MCQJ-700
Blade diameter	mm	300-450	350-600	350-700
Max processing size	mm	3200*2000*120	3200*2000*180	3200*2000*230
Dimension of worktable	mm	3200*2000	3200*2000	3200*2000
Worktable tilting degree	°	0-85°	0-85°	0-85°
Worktable rotation degree	°	0-90°/0-360°	0-90°/0-360°	0-90°/0-360°
Main motor	kw	15	18.5	18.5
Gross motor	kw	21	24	24
Water consumption	m³/h	4	4	4
Outline dimension	mm	6000*4800*2900	6000*4800*3100	6000*4800*3200
Gross weight	kg	5250	5500	5750
