Stone Miter Saw

What is a stone miter saw

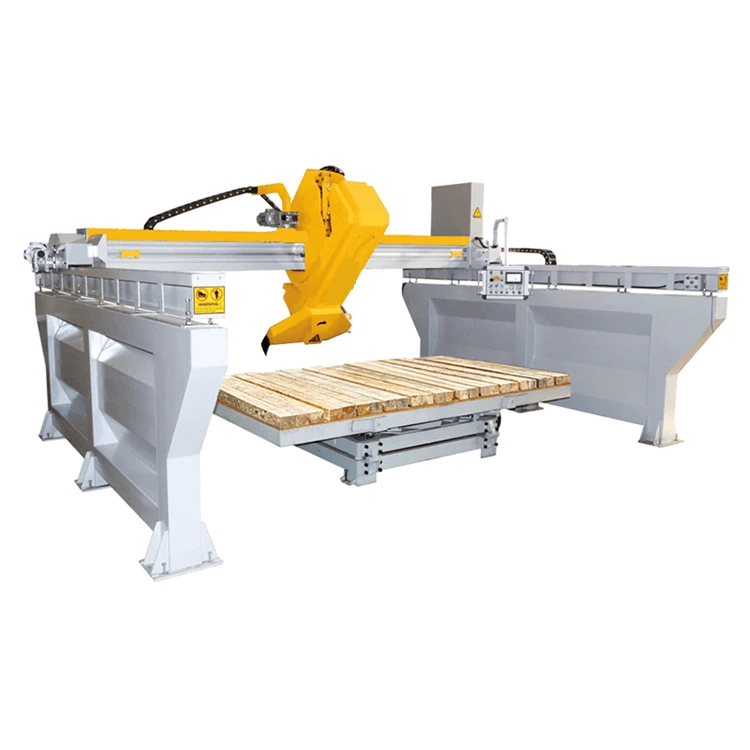

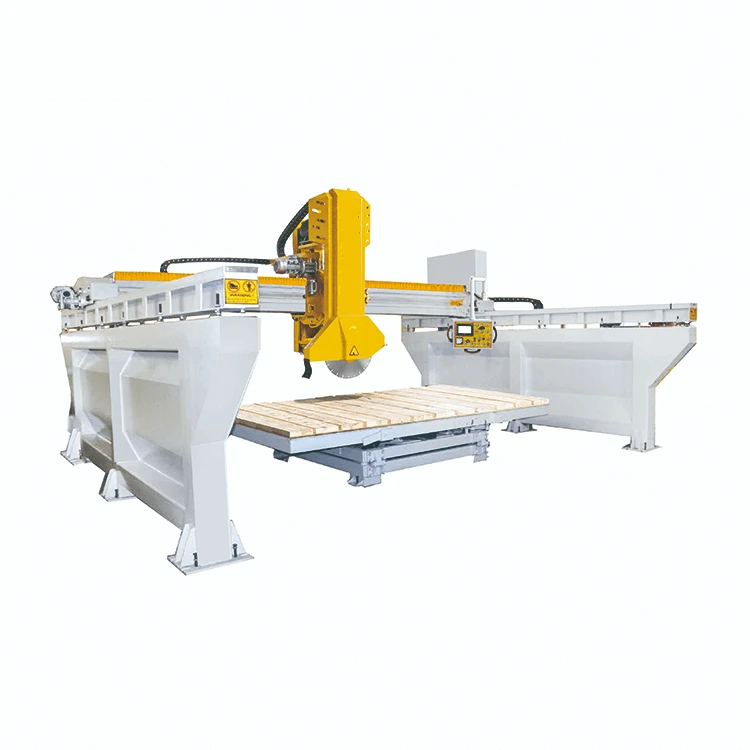

Stone miter saw, often referred to as a bridge saw, is a type of heavy-duty cutting machine used in the fabrication of stone, marble, granite, and other hard materials. It is designed to make precise cuts for various applications such as countertops, tiles, and other custom stonework.

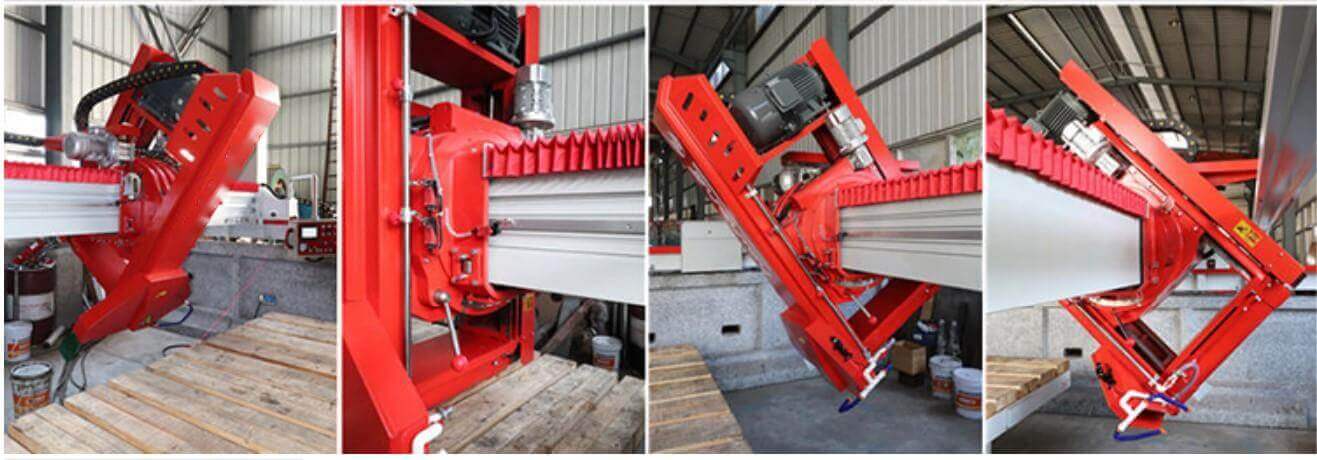

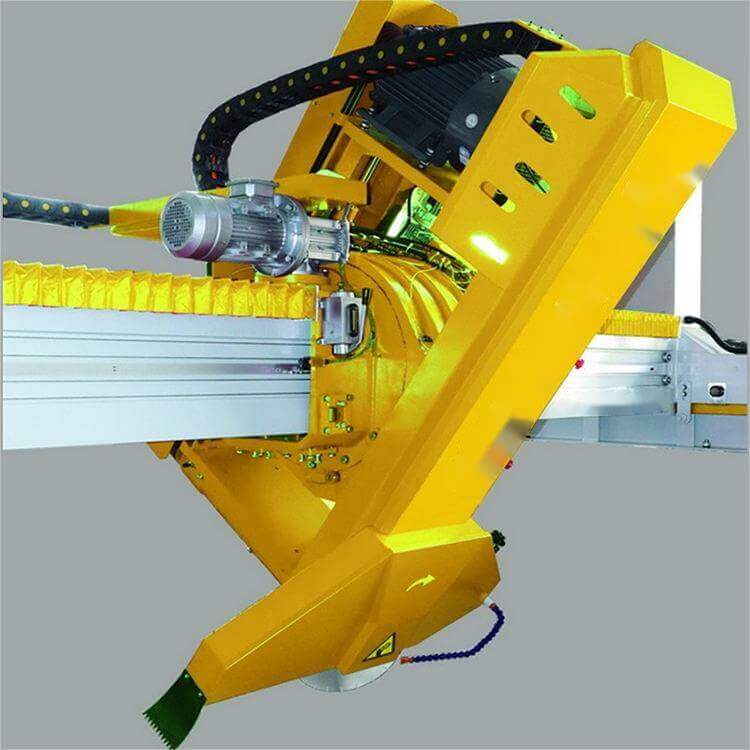

The key feature of this machine is its ability to tilt the cutting head to achieve a 45-degree angle, which is commonly referred to as a miter cut. This capability is essential when creating beveled edges for a seamless joint, which is often required for countertop corners or specialized design elements.

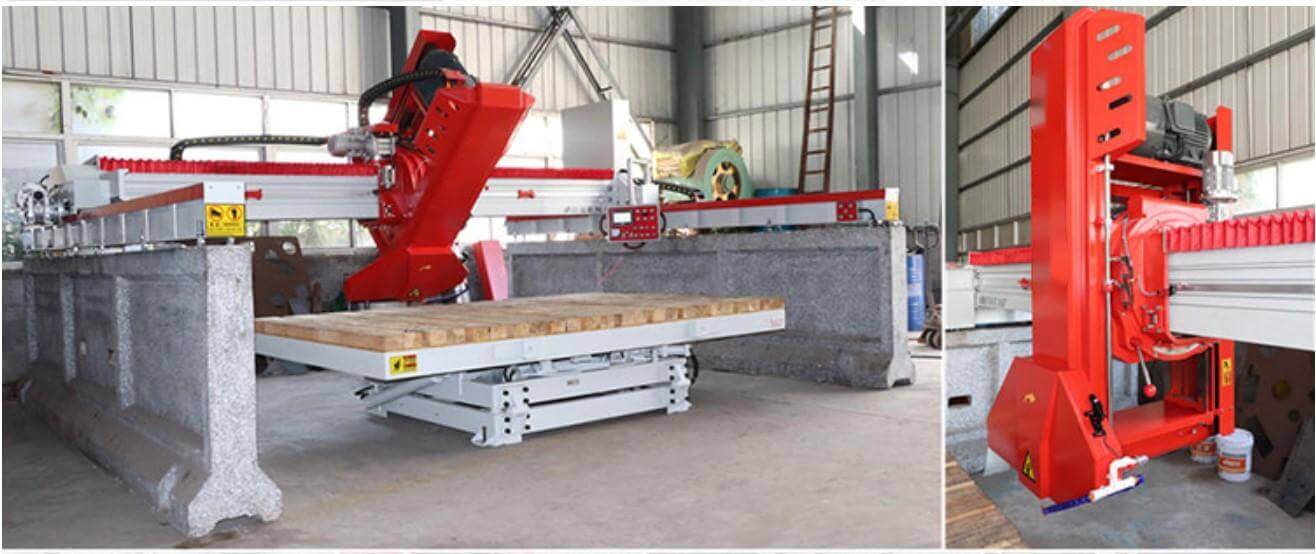

The bridge saw operates by running the stone slab beneath a bridge-like apparatus where the motorized cutting head moves across the stone. The tilting feature allows fabricators to switch from straight cuts to miter cuts without needing to reposition the slab, which saves time and enhances precision.

These machines are typically equipped with diamond blades to handle the hardness of stone materials and may include features like laser guides, programmable cut functions, and water cooling systems to prevent overheating and minimize dust. They are an integral part of modern stonework fabrication, providing both efficiency and accuracy for high-quality finishes.

what is the differences between a straight cut saw and miter saw machine

Both straight cut saws and miter saws are tools used for cutting materials, but they serve different purposes and have distinct features:

Straight Cut Saw:

1. Purpose: Designed primarily for making straight cuts.
2. Blade Position: The blade is fixed in a single position, perpendicular to the material being cut, creating a 90-degree angle.
3. Types: Can include simple hand saws, circular saws, table saws, and track saws.
4. Applications: Used for rough cuts or when precision is not the primary concern. They are commonly used in construction for cutting lengths of wood or other materials.
5. Adjustability: Some straight cut saws, like table saws, might have adjustable blades that can tilt to make angled cuts, but they are not as specialized as miter saws for this function.

Miter Saw Machine:

1. Purpose: Specifically designed to make precise angled cuts (miters) and crosscuts.
2. Blade Position: The blade can be adjusted to various angles relative to the material, typically ranging from 45 degrees to sometimes over 90 degrees for compound cuts.
3. Types: Includes standard miter saws, compound miter saws (which can tilt the blade for beveled cuts), and sliding compound miter saws (which can move the blade forward and backward to cut wider pieces of material).
4. Applications: Used for precision work such as trim, molding, framing, and any project where accurate angle cuts are necessary.
5. Adjustability: Highly adjustable with preset angle locks for common angles like 15, 30, and 45 degrees, as well as the ability to set custom angles.

In summary, a straight cut saw is generally used for simpler, straight cuts, while a miter saw is more specialized for making accurate angled and beveled cuts. The choice between the two will depend on the specific requirements of the project at hand.

Applications of stone miter saw

Stone miter saws, particularly those that can perform a tilting 45-degree cut, are specialized tools used in various applications where precise and angled cuts in stone materials are required. Here are some of the common applications for these saws:

1. Countertop Fabrication: One of the primary uses of a stone miter saw is in the creation of countertops, particularly for creating the mitered edge profiles that are often required where the countertop meets a backsplash or when creating a waterfall edge on kitchen islands.

2. Edge Profiling: Besides straight edges, fabricators use miter saws to cut angled edges on stone slabs for various edge profiles. This can include creating beveled edges or custom profiles that require a precise angled cut.

3. Joinery: Miter saws are ideal for cutting the miters necessary for joining two stone pieces at an angle, such as in the corners of a frame or where two pieces of stone meet at an angle other than 90 degrees.

4. Tile and Stone Flooring: For creating diagonal cuts on tiles or stone flooring materials, a stone miter saw can be used to fit pieces in complex layouts or around corners.

5. Building Facades: In construction, when stone materials are used for facades, window sills, or decorative elements, miter saws can create the precise angles needed for a perfect fit and finish.

6. Monument and Sculpture Work: Miter saws can also be used in the artistic sculpting of stone when specific angles are needed for design purposes or for fitting together large pieces of a sculpture.

7. Masonry Work: In masonry, a stone miter saw might be used to cut stone or concrete pavers at an angle for various landscaping projects, including walkways, patios, and walls that require angled blocks.

8. Fireplace Surrounds: Creating the angled cuts necessary for a tight-fitting, professional-looking fireplace surround is another application where these saws excel.

9. Architectural Millwork: Stone miter saws are used in architectural millwork to create precise angles on stone molding and trim work that complement the design elements of a building.

The ability to make accurate and clean angled cuts with a stone miter saw is essential in these applications to ensure that the final installation looks seamless and professional. The precision of these cuts is especially important when working with expensive materials like marble or granite, where mistakes can be costly.



Specifications of stone miter saw

Name	Unit	XZQJ-625
Blade diameter	mm	D.625
Main motor	kw	18.5
Max. cutting size	mm	3200*2000*200
Table size	mm	3200*2000
Table rotating degree	degree	90 or 360
Head titling degree	degree	0~45
Table upturning degree	degree	0~85
Weight	kg	6200
