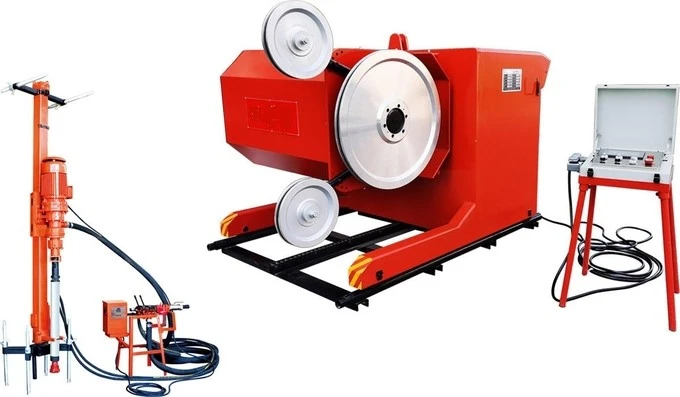

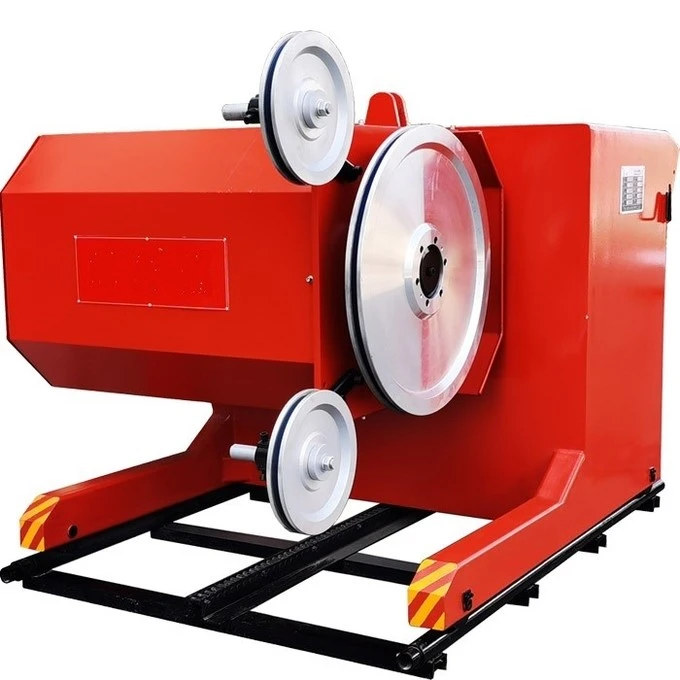

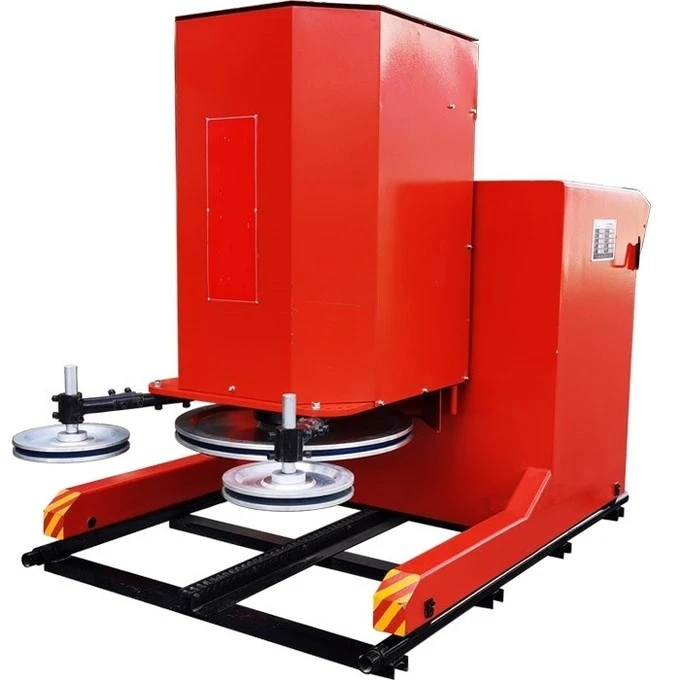

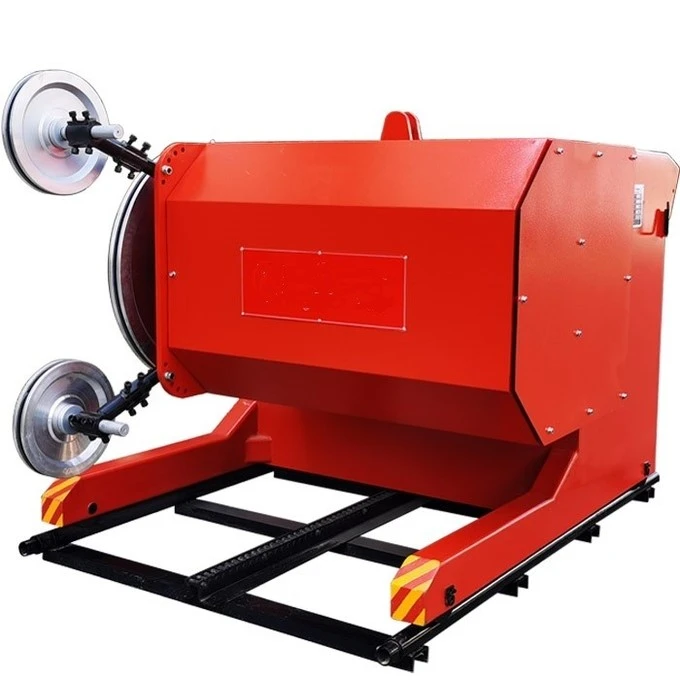

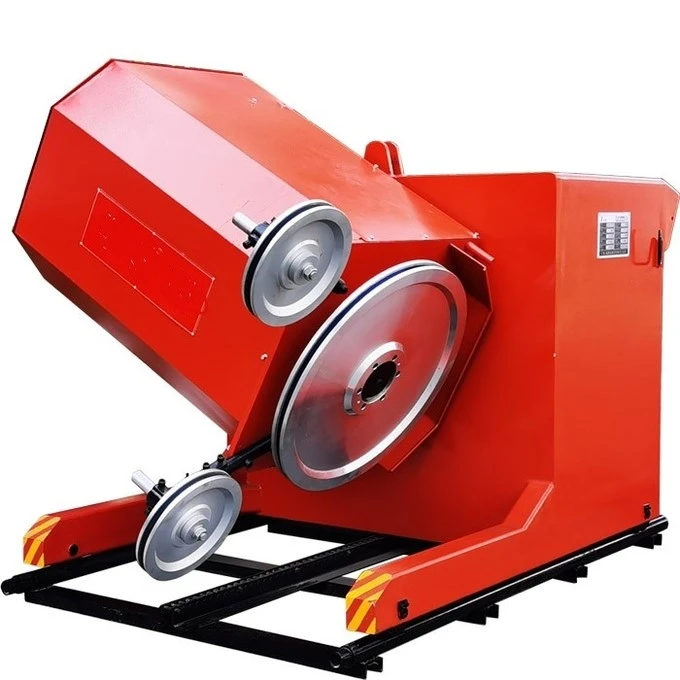

Quarry Wire Saw Machine

what is quarry wire saw machine

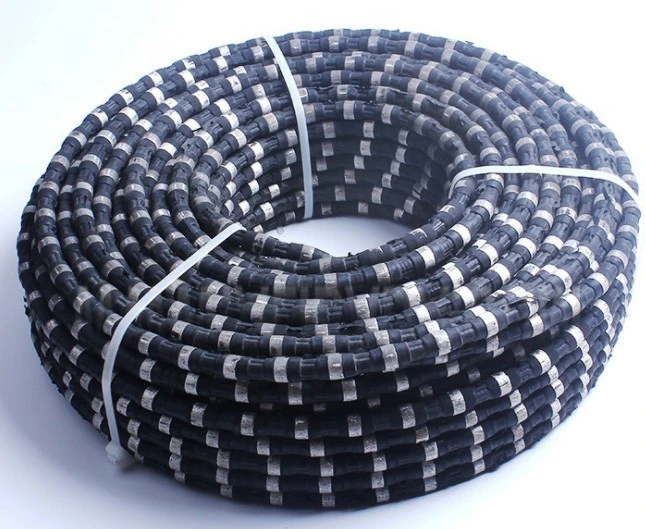

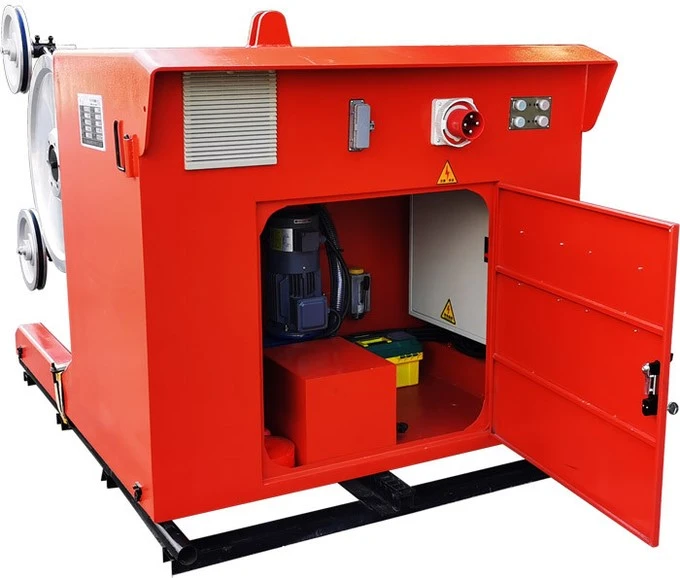

Quarry wire saw machine used for quarry cutting is a specialized piece of equipment that uses a metal wire or cable coated with diamond-tipped beads to cut large blocks of stone from quarries. This method is preferred for quarrying because it can cut very large blocks of stone with precision and efficiency.

The wire saw works by creating a loop of diamond-coated wire that is then threaded through a series of pulleys. It's driven by a motor, and the wire is continuously pulled through the stone, cutting it as it goes. The process is often controlled by a computer to ensure precision cuts. The advantage of using a wire saw is that it produces a smooth cut that minimizes waste and allows for the extraction of stone blocks in sizes that are manageable for further processing and transport.

Wire saw machines can be used for different types of stone, including granite, marble, and limestone, and they are an essential tool for modern-day stonemasons and quarry operations.

Factors that will affect cutting speed of wire saw machine



1. Wire Quality: The quality of the diamond wire, including the size, concentration, and quality of the diamonds embedded in the wire, can significantly affect cutting speed. High-quality diamonds and proper distribution along the wire ensure consistent cutting ability.

2. Tension of the Wire: Proper tensioning of the wire is crucial for effective cutting. If the wire is too loose, it can lead to inefficient cutting and wire breakage. If it's too tight, it can cause excessive wear or even snap the wire.

3. Wire Speed: The speed at which the wire is moved through the stone can impact the cutting efficiency. There is an optimal speed for different types of stone; too fast can lead to reduced cutting life and precision, while too slow can decrease productivity.

4. Material Hardness: The hardness of the stone being cut directly affects the cutting speed. Harder materials require more time to cut through than softer ones.

5. Coolant and Lubrication: Adequate cooling and lubrication are essential to prevent overheating of the wire. Water is often used both as a coolant and to remove stone slurry from the cut, which can otherwise slow down the process.

6. Pulley System and Machine Condition: The condition of the pulleys and overall maintenance of the machine can affect performance. Worn or misaligned components can reduce cutting speed and increase wire wear.

7. Cutting Parameters: The depth of each pass, the feed rate, and the cutting pattern can all influence how quickly a wire saw can cut through stone.

8. Stone Homogeneity and Fractures: The presence of natural fractures or variations in density within the stone can affect cutting speed. Homogeneous stone without many fractures is generally quicker to cut.

9. Operator Skill and Experience: Experienced operators who understand how to adjust all variables optimally for the type of stone and desired cut can significantly improve cutting speeds.

10. Environmental Conditions: External conditions such as temperature can affect both the machinery and the cutting process. For example, extreme cold can make certain stones more brittle and thus quicker to cut, but it may also affect machinery performance.

Understanding and optimizing these factors can lead to improved efficiency and productivity in quarry operations using wire saw machines.

Things you need to know if you are going to buy quarry wire saw machine

When considering the purchase of a quarry wire saw machine, you should pay attention to several key factors to ensure you choose the right equipment for your needs. Here are some important considerations:

1. Machine Quality and Reliability: Look for machines built by reputable manufacturers known for producing durable and reliable equipment. High-quality construction will reduce downtime and maintenance costs over time.

2. Cutting Performance: Evaluate the cutting speed, efficiency, and precision of the machine. This involves looking at the maximum cutting depth, the speed of the wire, and the power of the drive motors.

3. Type of Wire Used: Make sure the machine is compatible with high-quality diamond wires and check what kind of wires are recommended by the manufacturer, as this will affect your cutting capabilities and costs.

4. Machine Versatility: Consider the range of adjustments available for different types of cuts and stone materials. A versatile machine can adapt to various quarrying tasks and conditions.

5. Technical Specifications: Pay close attention to the technical specifications, including the maximum block size it can handle, the length of the wire, pulley sizes, and motor power.

6. Ease of Use and Maintenance: Look for a machine that is user-friendly and easy to maintain. Quick access to serviceable parts and clear maintenance guidelines can save you time and money.

7. Safety Features: Safety should be a top priority. Ensure that the machine has adequate safety features to protect operators, such as emergency stops, protective covers, and compliance with safety standards.

8. Support and Service: Check what kind of after-sales support is offered by the manufacturer or distributor. Reliable technical support, availability of spare parts, and service agreements are important for operational continuity.

9. Cost of Operation: Consider not only the initial purchase price but also the long-term operating costs, including power consumption, consumables like wires, and maintenance expenses.

10. Warranty and Service Agreements: Understand the warranty provided with the machine and what it covers. Service agreements can also be crucial for ensuring long-term performance and reliability.

11. Training and Installation: Find out if the seller provides training for your staff on how to operate and maintain the machine properly, as well as assistance with installation.

12. References and Reviews: If possible, get references from other quarry operators who have used the machines you're considering, and look for reviews or case studies that can provide insight into their performance in real-world conditions.

Taking these factors into account will help you make an informed decision when purchasing a quarry wire saw machine, ensuring that you select equipment that meets your specific needs and offers good long-term value.

Specifications of quarry wire saw machine

TECHNICAL DATA
Length of wire	m	20-150
Diameter of bead	mm	11.5
Linear velocity	m/s	0-40
Lead rail moving distance	m	6
Diameter of driving wheel	mm	Φ700
Power of main motor	kg	75
Gross power	kw	80
Gross weight	kg	3300
Dimensions ( Lx W x H )	mm	1200 x 1200 x 1400
