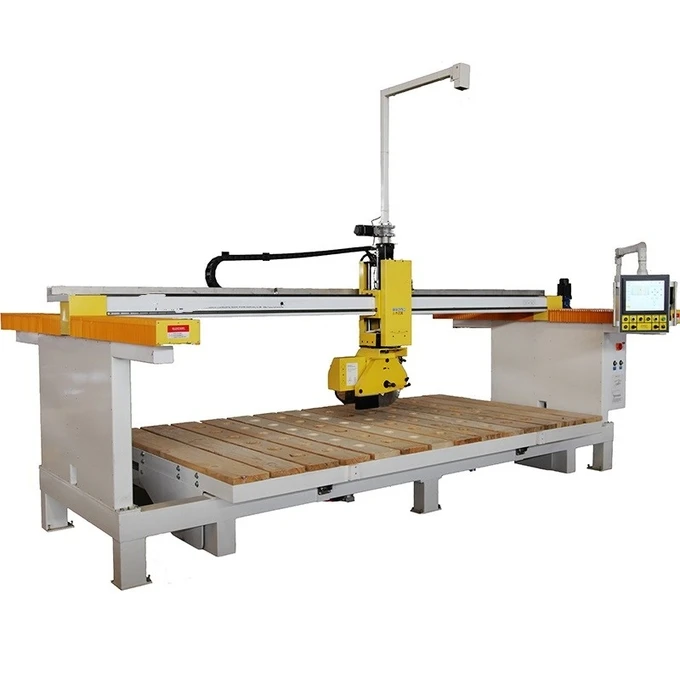

CNC Marble Tile Saw

CNC Marble Tile Saw

A CNC marble tile saw is a high-tech machine that uses computer programming to cut marble tiles with precision and accuracy. It works by cutting the marble tiles with a diamond blade controlled by a computer. As a result, it can perform various cuts, shapes, and designs into the marble tiles, which can be difficult to achieve manually.
Send Inquiry

CNC Marble Tile Saw - The Efficient Way to Cut Marble Tiles

Marble is a popular natural stone used in construction, especially for flooring and wall cladding. However, cutting marble tiles can be a challenging and time-consuming task, requiring precision and skill. Thanks to modern technology, the CNC (Computer Numerical Control) marble tile saw has made it more efficient and effortless.

A CNC marble tile saw is a high-tech machine that uses computer programming to cut marble tiles with precision and accuracy. It works by cutting the marble tiles with a diamond blade controlled by a computer. As a result, it can perform various cuts, shapes, and designs into the marble tiles, which can be difficult to achieve manually.



CNC Marble Tile Saw


One of the significant advantages of using a CNC marble tile saw is its accuracy. The machine can cut tiles to exact measurements and shapes, ensuring that each tile is uniform and fits perfectly. Moreover, it reduces the risk of errors, such as breaks, chips, or irregular cuts, which can occur when cutting tiles manually. Thus, it saves time, effort, and money on labor costs and wastage.

Another benefit of using a CNC marble tile saw is its speed. The machine can cut through a significant quantity of marble tiles in a short time, increasing productivity and output. Besides, it reduces the time needed to prepare and clean up the cutting area, making it efficient for commercial projects.

Additionally, the CNC marble tile saw allows for customization and creativity. The machine can cut intricate designs and patterns, adding a unique and personalized touch to the marble tiles. Thus, it is an excellent option for artistic and architectural projects.

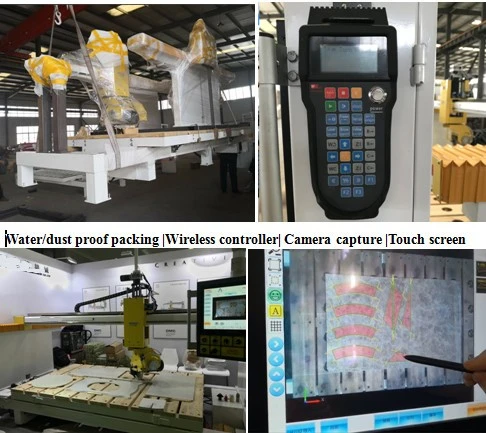

CNC Marble Tile Saw Computer System



Product Cut by CNC Marble Tile Saw



Product Cut by CNC Marble Tile Saw-2



CNC Marble Tile Saw Packing and Loading


Furthermore, the CNC marble tile saw is easy to operate and does not require extensive training. It has a user-friendly interface that allows operators to input the cutting dimensions, shapes, and designs. Moreover, it has safety features, such as a protective shield and emergency stop button, which ensures operator safety.

In conclusion, a CNC marble tile saw is a modern and efficient machine that revolutionizes the cutting process of marble tiles. It offers accuracy, speed, flexibility, and creativity, making it an excellent investment for construction and design companies. With the CNC machine, cutting marble tiles has become more accessible, faster, and precise.



Voltage

380v-3phase,50hz

Total power

11 kw

Stroke of X axis

3500mm

Stroke of Y axis

2000mm

Stroke of Z axis

260mm

Stroke of A axis

360 degree rotation

Cutting speed of X axis

1-2000mm/min

Cutting speed of Y axis

1-2000mm/min

Cutting speed of Z axis

1-1000mm/min

Rotating speed of A axis

0-7R/min

Cutting thickness

70mm

Cutting precision

0.2mm

Programing way

Manual or Import graphics

Overall size

4900x2750x2100mm

Weight

2200kg

Warranty

1 year
