How to troubleshoot electrical problems in a stone cutting machine?

Troubleshooting electrical problems in a stone cutting machine is a crucial skill for anyone in the stone processing industry. As a leading stone cutting machine supplier, we understand the importance of keeping your equipment running smoothly. In this blog, we will guide you through the process of identifying and resolving common electrical issues in stone cutting machines.

Understanding the Electrical System of a Stone Cutting Machine

Before you start troubleshooting, it's essential to have a basic understanding of the electrical system in your stone cutting machine. A typical stone cutting machine consists of several electrical components, including motors, switches, relays, sensors, and control panels. These components work together to power the machine, control its operation, and ensure safety.

The main power source for the machine is usually a three - phase electrical supply. The power is then distributed to different parts of the machine through a series of wires and connectors. Motors are used to drive the cutting blades, conveyor belts, and other moving parts. Switches and relays are used to control the flow of electricity, while sensors are used to monitor various parameters such as temperature, pressure, and position.

Common Electrical Problems and Their Symptoms

1. No Power to the Machine

• Symptoms: The machine does not turn on when the power switch is pressed. There are no lights or other signs of electrical activity.
• Possible Causes:
  • Tripped circuit breaker or blown fuse: Check the electrical panel for a tripped breaker or a blown fuse. Replace the fuse or reset the breaker if necessary.
  • Faulty power cord: Inspect the power cord for any visible damage, such as cuts or frayed wires. If damaged, replace the power cord.
  • Malfunctioning power switch: Test the power switch with a multimeter to see if it is functioning properly. If not, replace the switch.

2. Motor Not Running

• Symptoms: The motor does not start or stops running during operation. There may be a humming sound coming from the motor.
• Possible Causes:
  • Overload: Check if the motor is overloaded due to excessive cutting force or a jammed blade. Reduce the load or clear the jam.
  • Faulty motor capacitor: The capacitor is responsible for starting the motor. If it is faulty, the motor may not start. Test the capacitor with a multimeter and replace it if necessary.
  • Worn - out motor brushes: In some motors, brushes are used to transfer electrical current. If the brushes are worn out, the motor may not run properly. Replace the brushes.

3. Inconsistent or Erratic Operation

• Symptoms: The machine operates intermittently, or the cutting speed and force vary unexpectedly.
• Possible Causes:
  • Loose electrical connections: Check all the electrical connections in the machine, including wires, terminals, and connectors. Tighten any loose connections.
  • Faulty sensors: Sensors can provide incorrect information to the control panel, causing erratic operation. Test the sensors with a multimeter or other appropriate testing equipment and replace any faulty sensors.
  • Malfunctioning control panel: The control panel is responsible for regulating the machine's operation. If it is malfunctioning, it can cause inconsistent performance. Have the control panel inspected and repaired by a qualified technician.

4. Electrical Short Circuit

• Symptoms: There may be a burning smell, sparks, or a sudden loss of power.
• Possible Causes:
  • Damaged insulation: Inspect the wires and cables for any signs of damaged insulation. If found, repair or replace the damaged parts.
  • Water or moisture ingress: Stone cutting machines often operate in wet environments. Water or moisture can cause short circuits. Check for any signs of water damage and dry the affected areas thoroughly.

Troubleshooting Steps

Step 1: Safety First

Before starting any troubleshooting, make sure to turn off the power supply to the machine and unplug it from the electrical outlet. This will prevent any electrical shock or injury.

Step 2: Visual Inspection

• Examine the machine for any visible signs of damage, such as loose wires, burned components, or corroded connections. Look for any signs of water or moisture, which can cause electrical problems.
• Check the condition of the power cord, switches, and control panel.

Step 3: Use Testing Equipment

• A multimeter is a useful tool for testing electrical components. You can use it to measure voltage, current, and resistance. For example, you can use a multimeter to check if a switch is functioning properly by measuring the continuity across its terminals.
• Other testing equipment, such as a circuit tester or an insulation resistance tester, may also be required depending on the specific problem.

Step 4: Isolate the Problem

• If you suspect a particular component is causing the problem, try to isolate it from the rest of the electrical system. For example, if you think a motor is faulty, disconnect it from the power supply and test it separately.

Step 5: Replace or Repair Faulty Components

• Once you have identified the faulty component, replace it with a new one or have it repaired. Make sure to use high - quality replacement parts that are compatible with your machine.

When to Seek Professional Help

While many electrical problems in stone cutting machines can be resolved by following the steps outlined above, some issues may require the expertise of a professional electrician or a technician. Here are some situations when you should seek professional help:

• If you are not familiar with electrical systems and do not have the necessary tools and knowledge to troubleshoot the problem safely.
• If the problem involves complex components such as the control panel or the motor controller.
• If the machine is still under warranty, it is recommended to contact the manufacturer or an authorized service provider for repairs.

Our Stone Cutting Machine Products

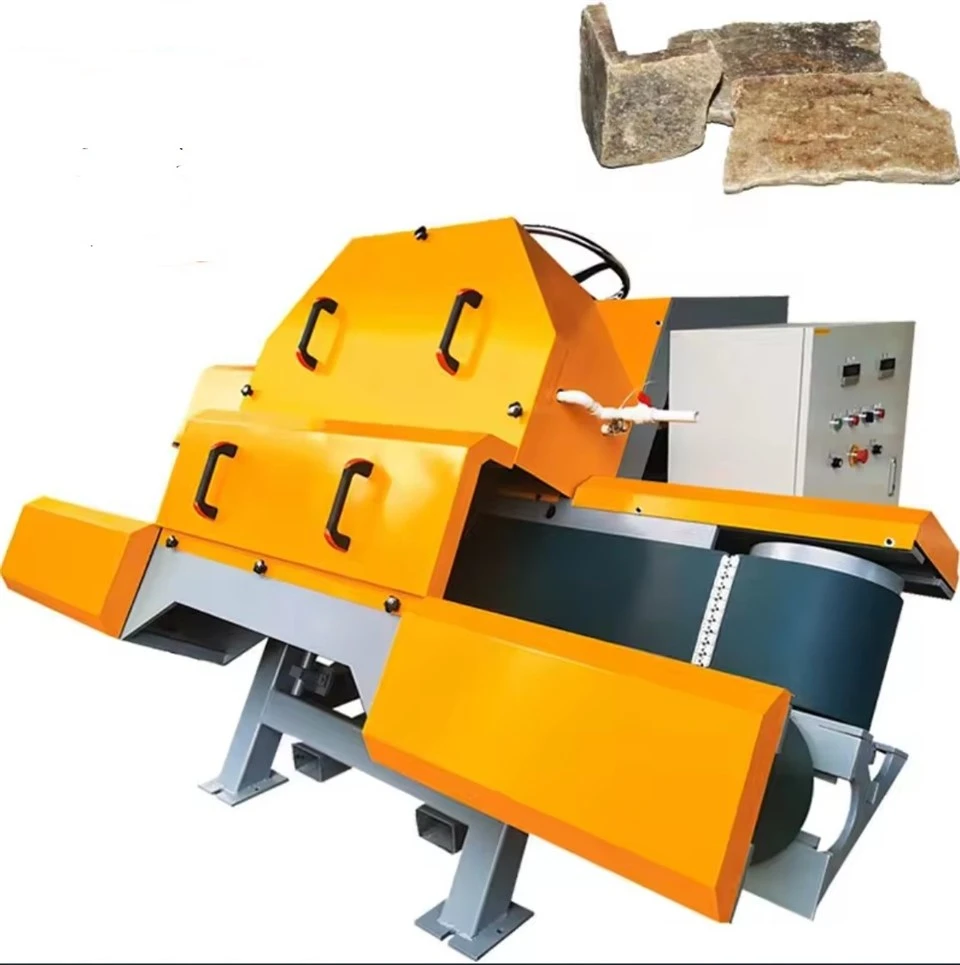

As a reliable stone cutting machine supplier, we offer a wide range of high - quality stone cutting machines to meet your different needs. For example, we have Bridge Saw For Sale in Canada, which is suitable for large - scale stone cutting operations. Our Marble Band Sawing Machine is perfect for cutting marble with high precision. And our Stone Veneer Splitting Machine can efficiently split stone veneers.

If you are facing electrical problems with your stone cutting machine or are interested in purchasing a new machine, we are here to help. Our team of experts can provide you with professional advice on troubleshooting and maintenance, as well as assist you in choosing the right machine for your specific requirements. Contact us today to start a discussion about your stone cutting needs.

References

• "Electrical Troubleshooting Handbook" by Tom Henry
• "Industrial Electrical Equipment Maintenance and Troubleshooting" by Paul D. Zbaraschuk
